Harvey Alpha 36″ Table Saws · Master Rip Fence System

Master Rip Fence System — Rail Hardware Information

Overview

Below is a breakdown of which bolts from the included rail hardware kit are used for installing the Master Rip 36″ front and rear rails and extension table. Refer to the exploded view diagram and reference images for correct positioning and installation sequence.

Hardware Kit Overview

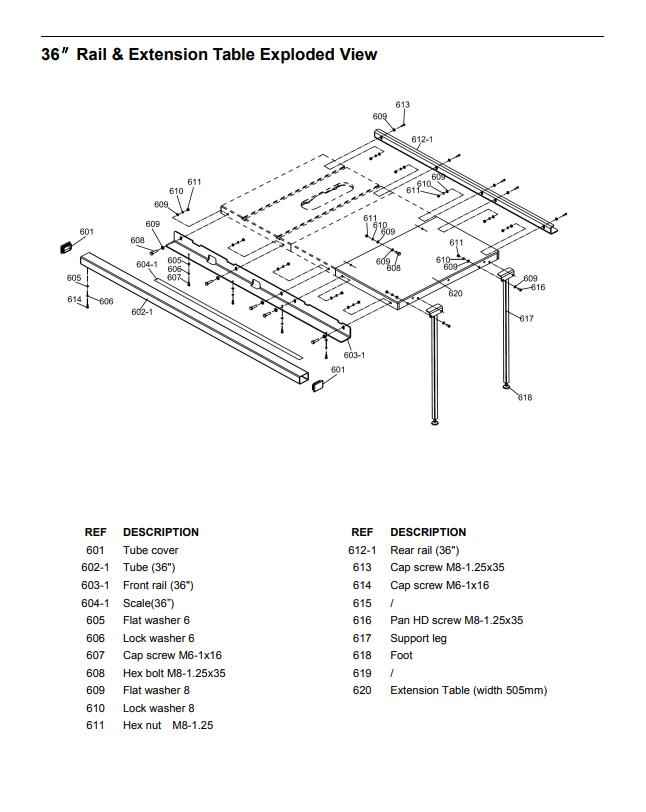

Master Rip 36″ Rail Hardware Kit — Parts Overview

Master Rip 36 inch rail hardware kit parts overview

Rail Installation

Front Rail to Cabinet Part 608

Part 608 — Hex Bolt M8-1.25 × 40mm

Shown on the left side of the reference image below

Rear Rail to Cabinet Part 613

Part 613 — Cap Screw M8-1.25 × 35mm

Shown on the right side of the reference image below

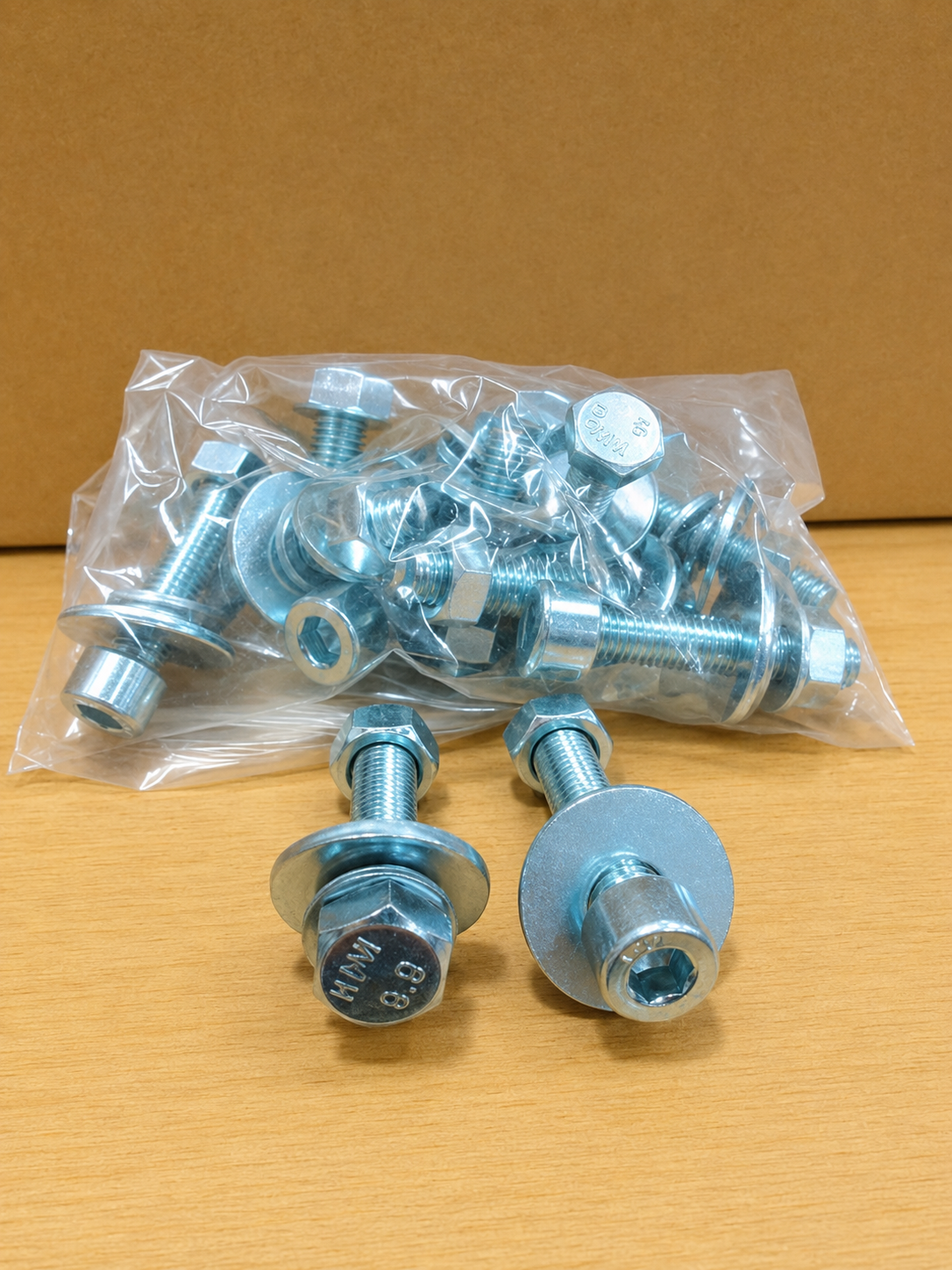

Rail Installation — Part 608 (Left / Front) & Part 613 (Right / Rear)

Rail installation showing Part 608 front rail bolt left side and Part 613 rear rail cap screw right side

Extension Table Leg Installation

Phenolic Extension Table to Leg Brackets Part 616

Part 616 — Pan Head Screw M8-1.25 × 35mm

Located at the far right side of the table — attaches the phenolic extension table to the leg brackets

Two screws per leg are required for secure attachment

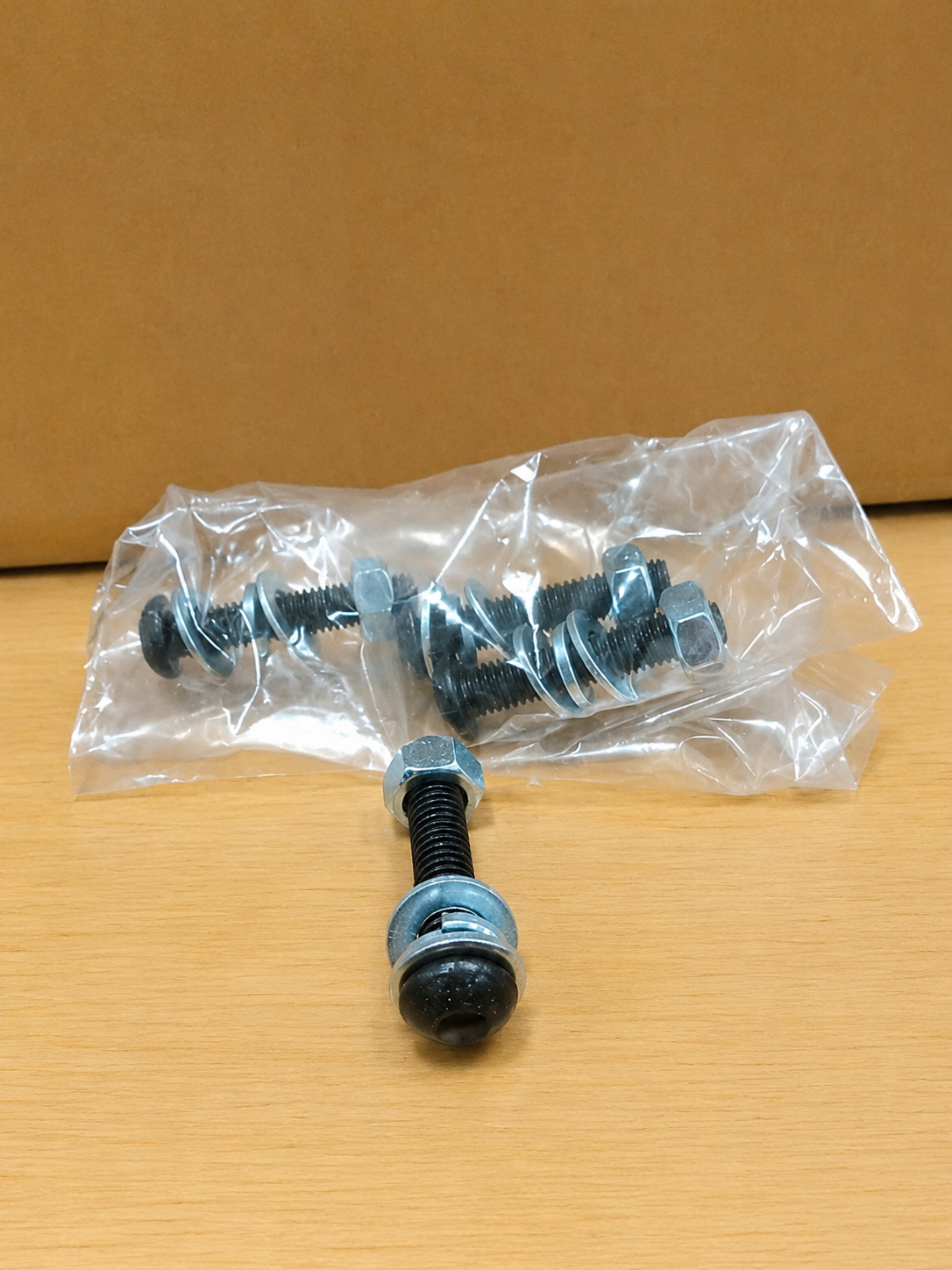

Extension Table Leg Installation — Part 616

Extension table leg installation using Part 616 pan head screws

Hardware Summary

Part #	Description	Used For
608	Hex Bolt M8-1.25 × 40mm	Front Rail to Cabinet
613	Cap Screw M8-1.25 × 35mm	Rear Rail to Cabinet
616	Pan Head Screw M8-1.25 × 35mm	Extension Table to Leg Brackets (2 per leg)

For questions about rail installation or missing hardware, please contact our sales team.
