Harvey Alpha Series Table Saws · Master Rip Fence System

Front Rail Alignment — Rail Height Setup

Overview

For optimal fence performance on your Harvey Alpha Table Saw, we recommend positioning the front rail so that the "L" bracket aligns precisely with the beveled edge of the table, as shown in the reference image below. Correct rail height is essential for smooth fence operation and accurate, repeatable cuts.

Why Rail Height Matters

Positioning the front rail at the correct height — with the L-bracket aligned to the table's beveled edge — helps prevent the most common fence setup issues:

Fence rocking or wobbling during cuts

Improper locking — fence not clamping securely to the rail

Inconsistent accuracy — fence shifting or not holding its set position

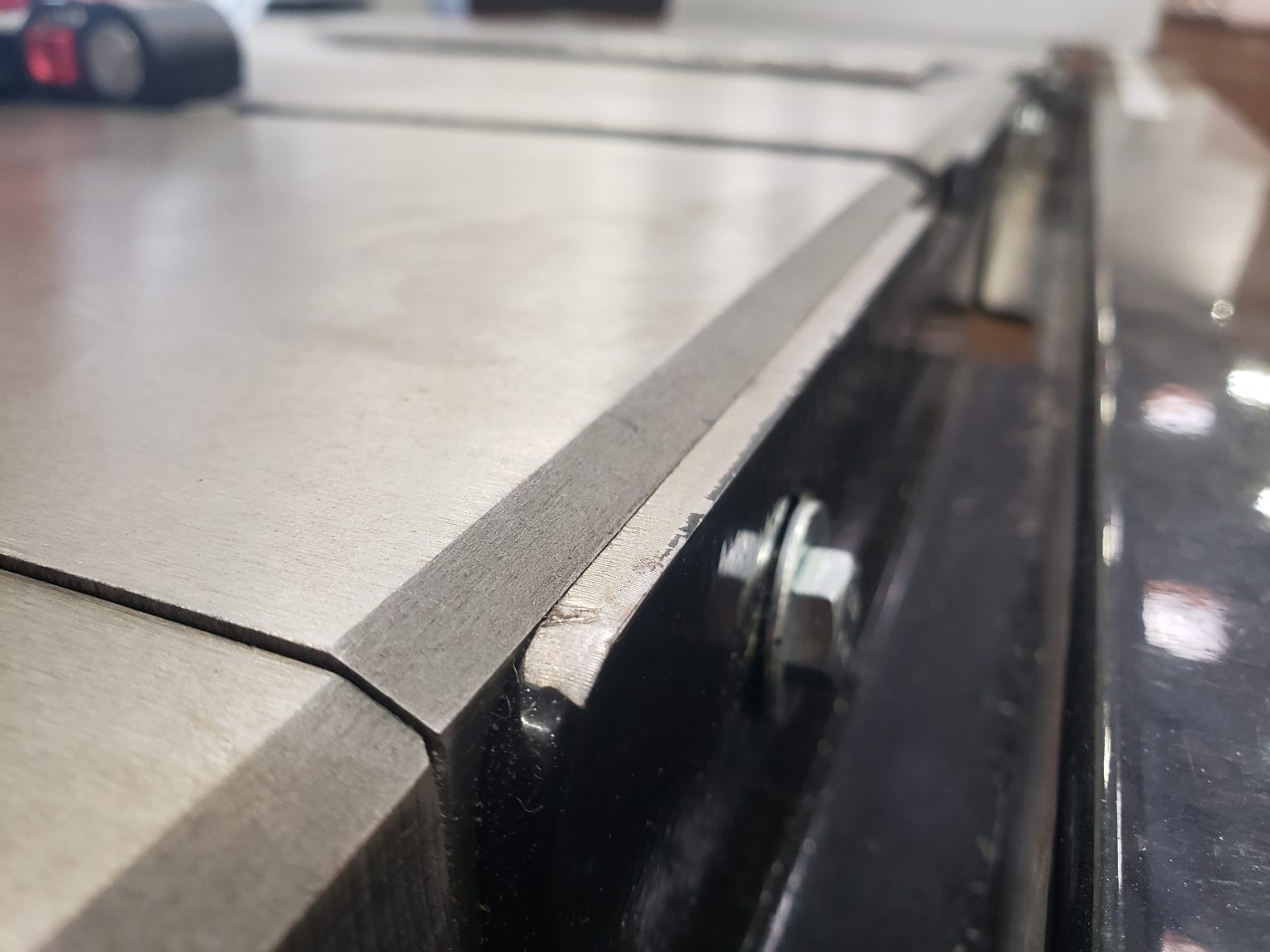

Correct Rail Alignment — Reference Photo

L-bracket aligned with the beveled edge of the table

Master Rip Fence — Front Rail "L" Bracket at Beveled Table Edge

Master Rip Fence front rail L-bracket aligned with beveled table edge

For further help with fence rail setup or alignment, please contact our support team.
