Harvey Alpha 52" Table Saws: Master Rip Fence System Rail Hardware Information

Created by Gabriel Izzo, Modified on Tue, 8 Jul at 4:45 PM by Gabriel Izzo

Below is a breakdown of which bolts from the included rail hardware kit are used for installing the Master Rip 52" front and rear rails and extension table:




Rail Installation:

  • Front Rail to Cabinet:

    • Uses Part 608 – Hex Bolt M8-1.25 × 40mm

    • Shown on the left side of the image below

  • Rear Rail to Cabinet:

    • Uses Part 613 – Cap Screw M8-1.25 × 35mm

    • Shown on the right side of the image below

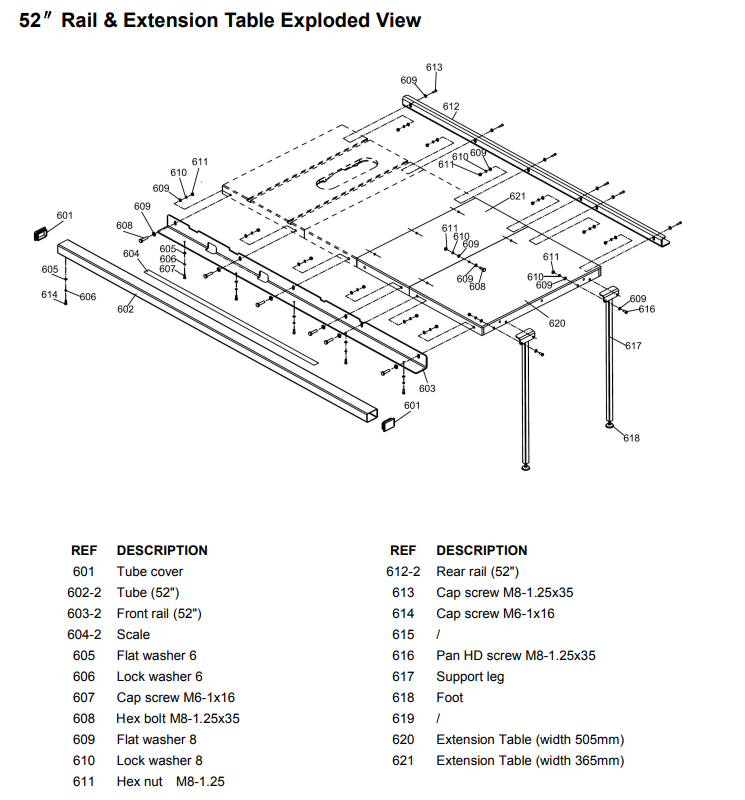

Please refer to the exploded view diagram and image below for correct positioning and installation sequence.




Extension Table Leg Installation:

  • Phenolic Extension Table to Leg Brackets (far right side of table):

    • Uses Part 616 – Pan Head Screw M8-1.25 × 35mm

    • Each leg requires two screws for secure attachment to the extension table
