Harvey Alpha Series Table Saws: HW110-36Pro Dimensional Reference

Created by Gabriel Izzo, Modified on Wed, 27 May at 3:03 PM by Gabriel Izzo

Harvey Alpha Series Table Saws · Specifications

HW110-36Pro — Dimensional Reference

Applicable Models

HW110LC-36Pro

HW110TC-36Pro

HW110S-36Pro

Overview

A scaled top-down dimensional reference for the HW110-36Pro table saw with the B-36 Big Eye Rip Fence System installed. All dimensions are provided in both imperial and metric units. Use this reference when planning shop layout, verifying clearances, or ordering compatible accessories.

Dimensional Diagram — Top-Down View

B-36 Big Eye Rip Fence System installed · Imperial & Metric

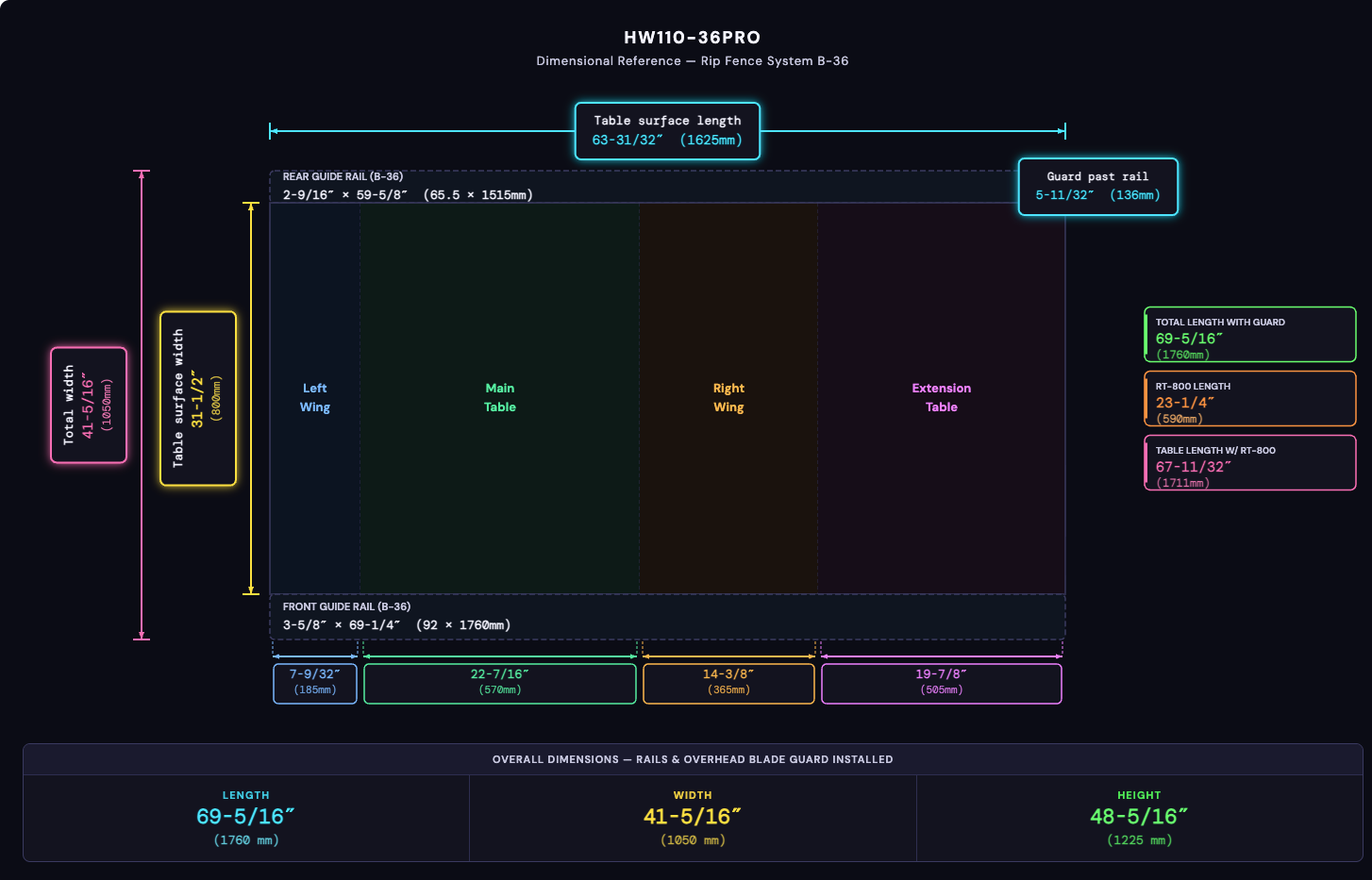

HW110-36Pro with B-36 Rip Fence — Scaled Top-Down View

HW110-36Pro dimensional diagram top-down view with B-36 rip fence system

Table Surface Length

Left to right — four sections

Section	Imperial	Metric
Left Wing	7‑9/32″	185 mm
Main Table	22‑7/16″	570 mm
Right Wing	14‑3/8″	365 mm
Extension Table	19‑7/8″	505 mm
Total Table Surface Length	63‑31/32″	1,625 mm

Table Surface Width & Total Width

Front to back including B-36 guide rails

Component	Imperial	Metric
Table Surface Width (front to back)	31‑1/2″	800 mm
Rear Guide Rail (B-36)	2‑9/16″ × 59‑5/8″	65.5 × 1,515 mm
Front Guide Rail (B-36)	3‑5/8″ × 69‑1/4″	92 × 1,760 mm
Total Width (both rails + fence)	41‑5/16″	1,050 mm

Overhead Guard & Extended Lengths

Item	Imperial	Metric
Guard pipe extension past rail	5‑11/32″	136 mm
Total length with overhead guard pipe	69‑5/16″	1,760 mm
Router Table RT-800 length	23‑1/4″	590 mm
Total table surface length with RT-800	67‑11/32″	1,711 mm

Overall Machine Dimensions

With rails and overhead blade guard installed

Dimension	Imperial	Metric
Length	69‑5/16″	(1,760 mm)
Width	41‑5/16″	(1,050 mm)
Height	48‑5/16″	(1,225 mm)

Shop Layout Note

All dimensions are nominal and measured with the B-36 Rip Fence System installed. Actual shop clearance requirements should account for additional space for material handling, fence travel, and operator access on all sides of the machine.

For questions about machine dimensions or shop layout planning, please contact our support team.
