T-Slot Dimensions

Overview

Standard T-slot dimensions for the Harvey Alpha Series table saws and band saws. These dimensions are compatible with Harvey accessories such as the MG-36PRO miter gauges, RG-1/RG-2 Roller Guides, and many other common woodworking jigs and hold-downs. Always verify compatibility with your specific accessories before use.

Main Table T-Slot Dimensions

Dimension	Measurement
Width (top opening)	3/4″
Depth	3/8″
Width at the T (base)	1″

T-Slot Dimensional Diagram

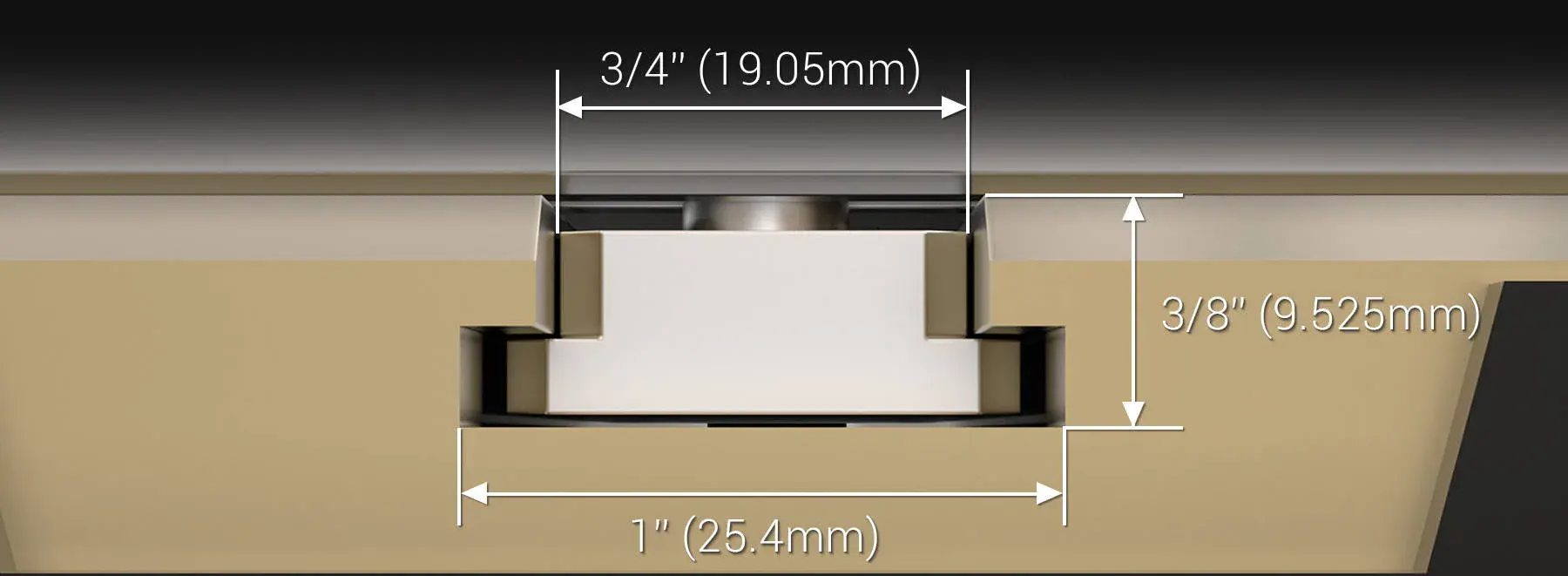

Main Table T-Slot — Cross-Section Diagram

Harvey table saw and band saw T-slot dimensional cross-section diagram

For questions about T-slot compatibility or accessory fitment, please contact our support team.
