Compass Arch Hold Down AH-3/AH-3T: Table & T-Slot Compatibility

Created by Gabriel Izzo, Modified on Thu, 21 May at 6:05 PM by Gabriel Izzo

Compass Arch Hold Downs · AH-3 / AH-3T

Table & T-Slot Compatibility

Applicable Models

Compass AH-3 Arch Hold Down

Compass AH-3T Arch Hold Down

AH-3

Workbench Dog Hole Compatibility

The AH-3 can be installed on any workbench with the following specifications:

Dog Hole Diameter: 3/4″ – 13/16″ (19 mm – 20.6 mm)

Bench Top Thickness: 2″ – 6″ (51 mm – 152 mm)

AH-3T

T-Slot Compatibility

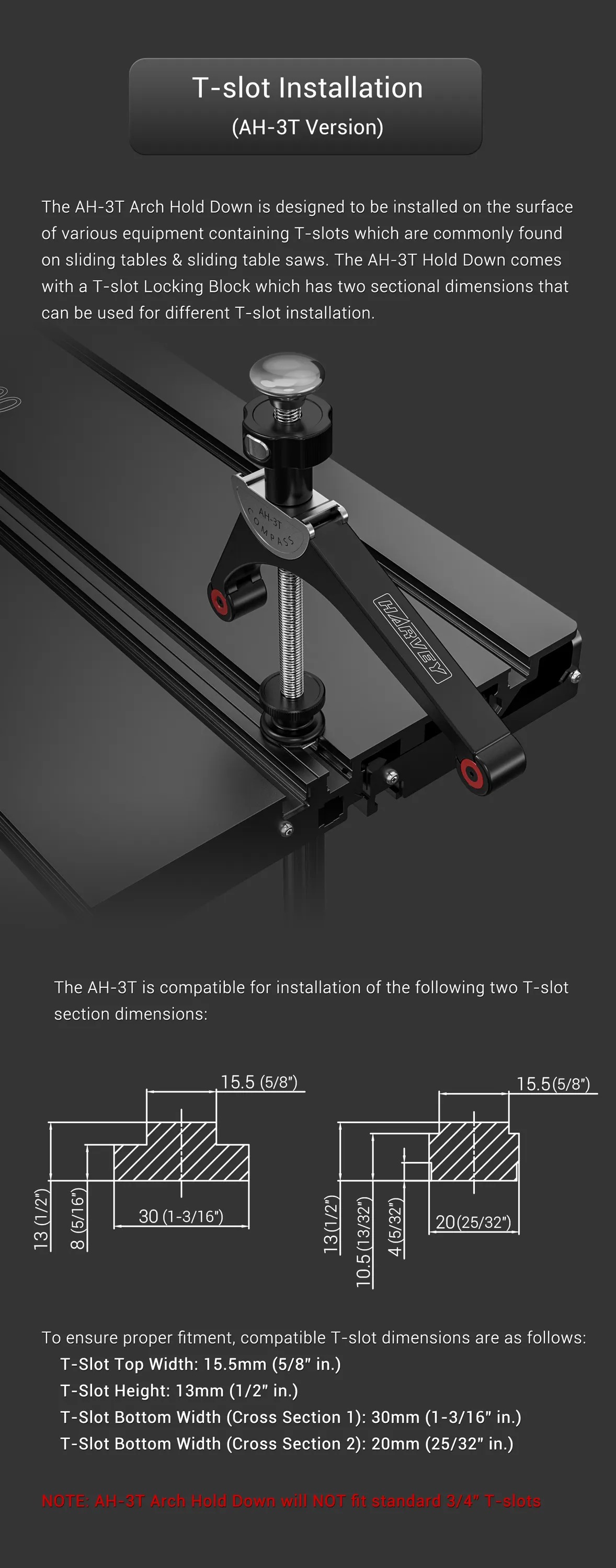

The AH-3T is primarily designed to be used with the ST-1500 Sliding Table or sliding tables compatible with the T-slot dimensions shown in the diagram below. Check that your T-slots match either of the two dimension profiles shown to confirm compatibility.

AH-3T Compatible T-Slot Dimensions

AH-3T compatible T-slot dimension profiles

For further questions about AH-3/AH-3T compatibility with your specific table or bench, please contact our support team.
