Making a Sub/Sacrificial Fence

Applicable Models

Compass MG-36

Compass MG-36PRO

If needed, a user-made sub-fence can be added to the MG-36/MG-36PRO for additional support. The steps below cover sub-fence construction, attachment, and flip stop height adjustment. Hardware sourcing references are provided at the end of this article.

Making a Sub Fence

Optional additional support for the MG-36 / MG-36PRO

Sub Fence Construction & Attachment

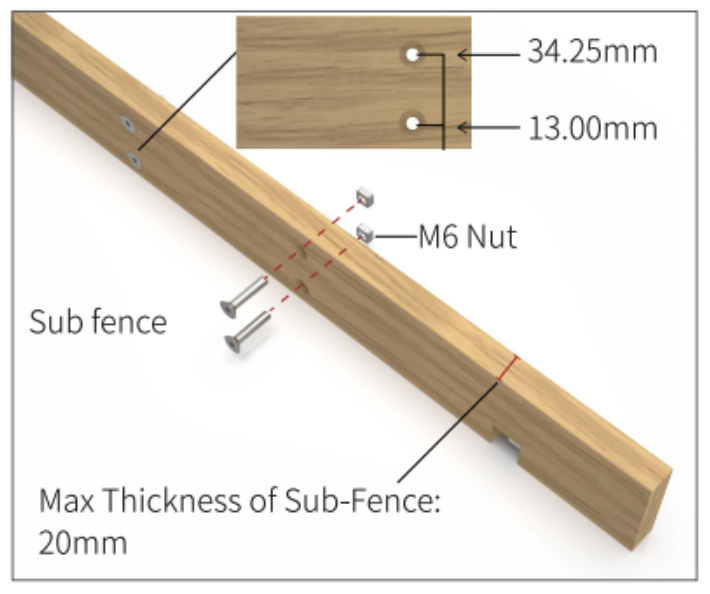

Sub fence dimensions diagram — 34.25mm and 13.00mm hole spacing, M6 nut location, max thickness 20mm

If needed, users can make and utilize sub-fences for additional support. You can secure the sub-fence onto the aluminum fence body of the MG-36/MG-36PRO by using a countersunk head screw and rectangular nut. We recommend using at least 6 sets of screws and nuts for securing the sub-fence.

Hole spacing: 34.25 mm / 13.00 mm

Fastener: M6 Nut

Max sub-fence thickness: 20 mm

The hardware required for sub-fence attachment can be sourced from the McMaster-Carr links above, or purchased from any compatible supplier. See the M6 hardware reference links at the top of this article.

Adjusting the Flip Stop Height

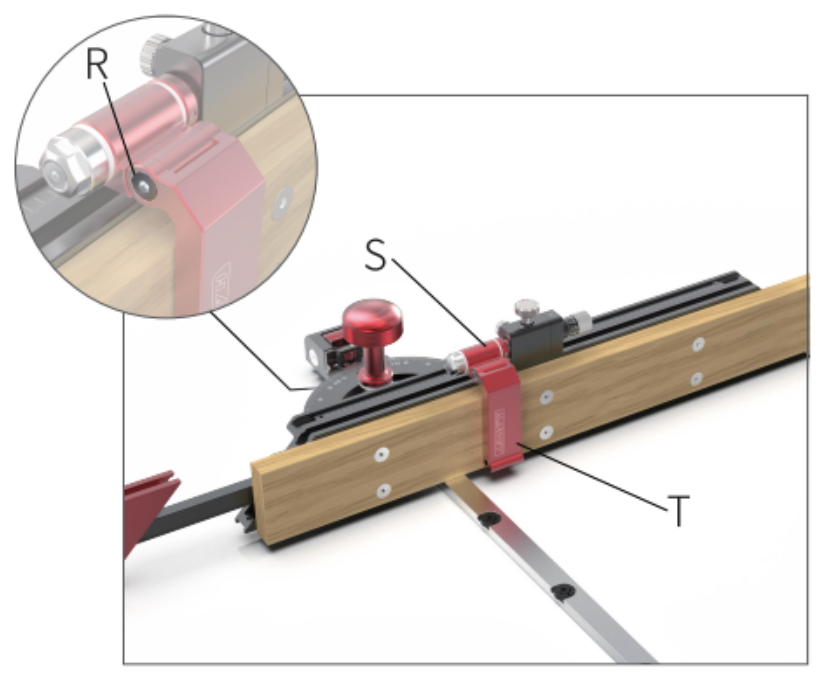

Flip stop height adjustment diagram — Screw (R), Block Holder (S), and Flip Stop (T) components labeled

To position the flip stop (T) closer to the table surface, loosen Screw (R) and adjust the Block Holder (S). Once the flip stop height is at the desired position, re-secure Screw (R).

R — Screw (loosen to adjust)

S — Block Holder

T — Flip Stop

Sourcing the Hardware

Reference links for M6 square nuts and screws

There are many options available from different suppliers for sacrificial fence hardware. The following McMaster-Carr links are provided as a convenient reference for sourcing compatible M6 square nuts and screws.

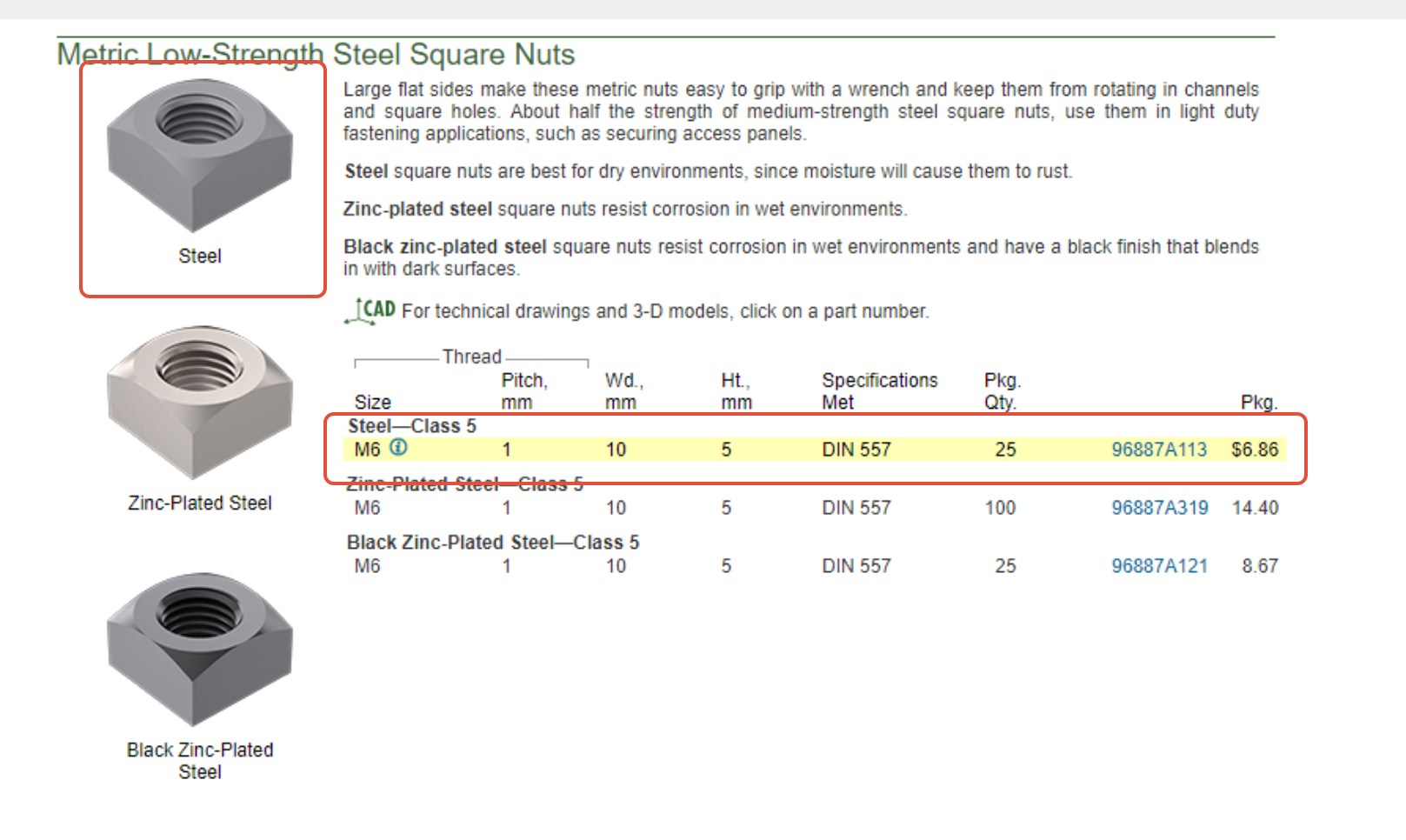

M6 Square Nuts

M6 square nuts slide into the T-slots on the miter gauge fence to allow a sacrificial fence to be attached.

M6 Square Nuts — McMaster-Carr

mcmaster.com — Compatible M6 square nuts for T-slot mounting

↗

M6 Square Nuts — McMaster-Carr Reference

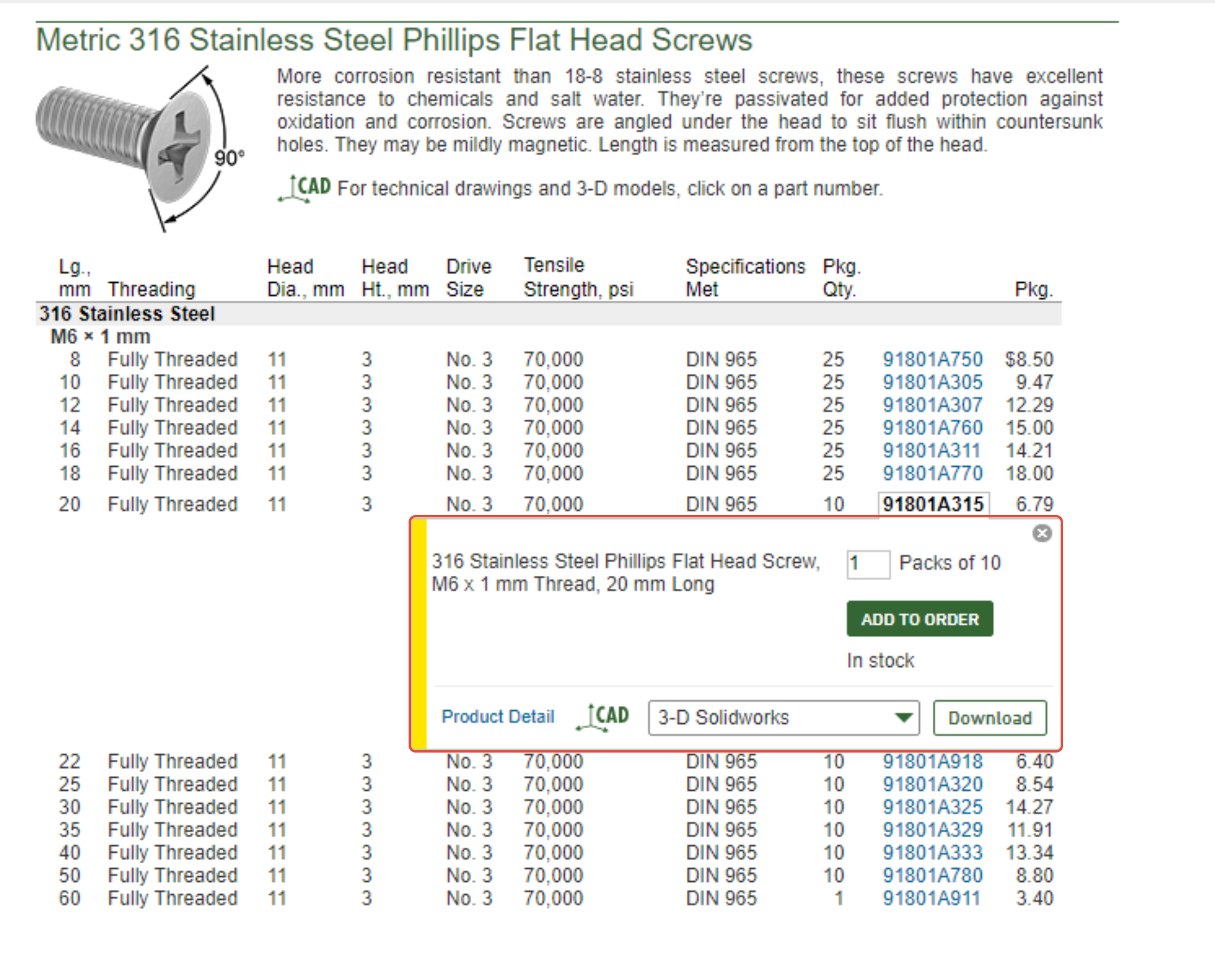

M6 Screws

M6 screws thread into the square nuts to clamp the sacrificial fence board securely against the miter gauge fence face.

M6 Screws — McMaster-Carr

mcmaster.com — Compatible M6 screws for sacrificial fence attachment

↗

M6 Screws — McMaster-Carr Reference

These are reference links only — many other suppliers carry equivalent M6 square nuts and screws. When sourcing from alternate suppliers, verify that the thread specification and dimensions match before purchasing.

For further questions about the sacrificial fence or sub-fence setup, please contact our support team.
