Compass MG-36/MG-36PRO Miter Gauges: What sets them apart?

Created by Gabriel Izzo, Modified on Thu, 21 May at 9:54 AM by Gabriel Izzo

Compass Miter Gauges · Overview

MG-36 & MG-36PRO — What Sets Them Apart?

Models Covered

Compass MG-36PRO

Compass MG-36 (Discontinued)

Below are the key differences between the Compass MG-36PRO and the original Compass MG-36 miter gauge. The non-Pro version has been discontinued — the MG-36PRO is the current model and includes several design improvements.

Compass MG-36PRO — Product Page

harveywoodworking.com

↗

Current Model

Compass MG-36PRO — Features & Specifications

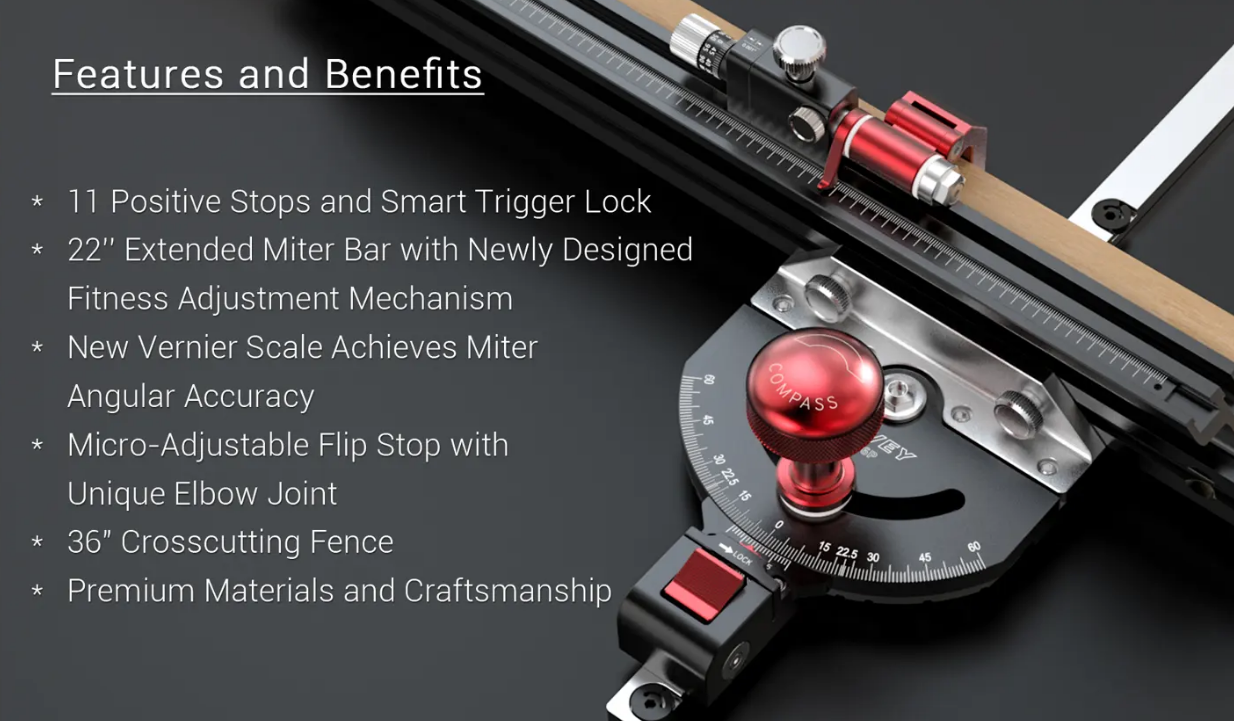

Compass MG-36PRO — Overview

Longer Miter Bar for Better Track Support

The PRO features a longer miter bar that provides improved stability and support within the miter track for more accurate, consistent cuts.

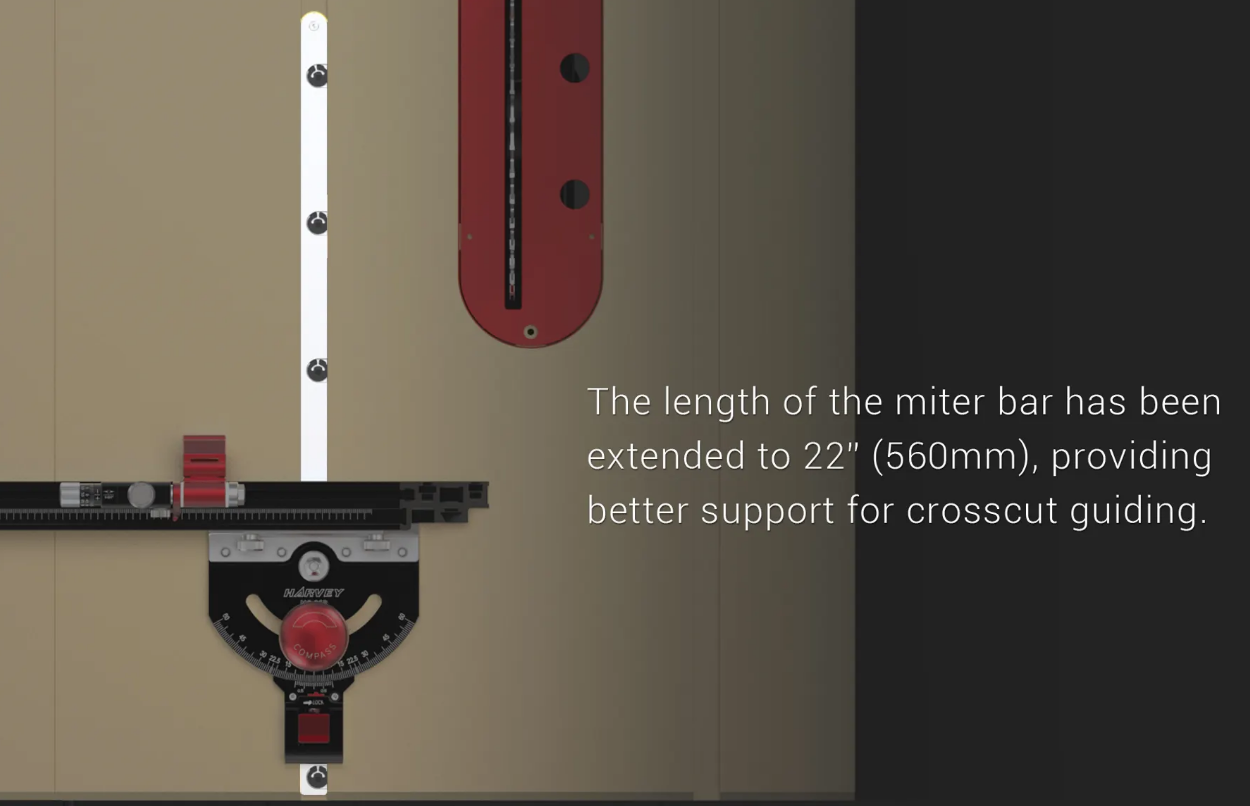

MG-36PRO — Longer Miter Bar

Re-Designed Flip Stop

The PRO includes a redesigned flip stop for more reliable and repeatable stop positioning.

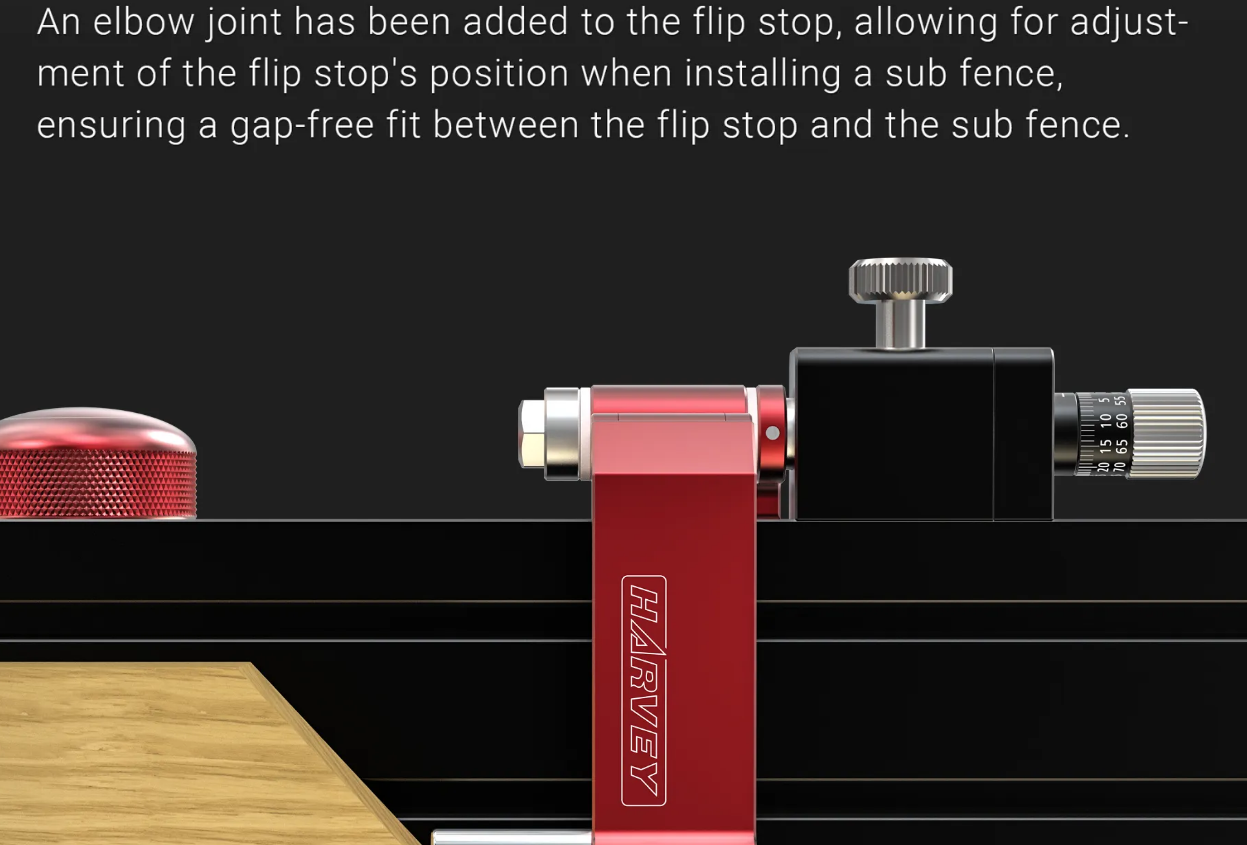

MG-36PRO — Re-Designed Flip Stop

Newly Designed Cam Adjusters

The PRO features newly engineered cam adjusters for more precise miter bar fitment and a tighter, slop-free fit in the track.

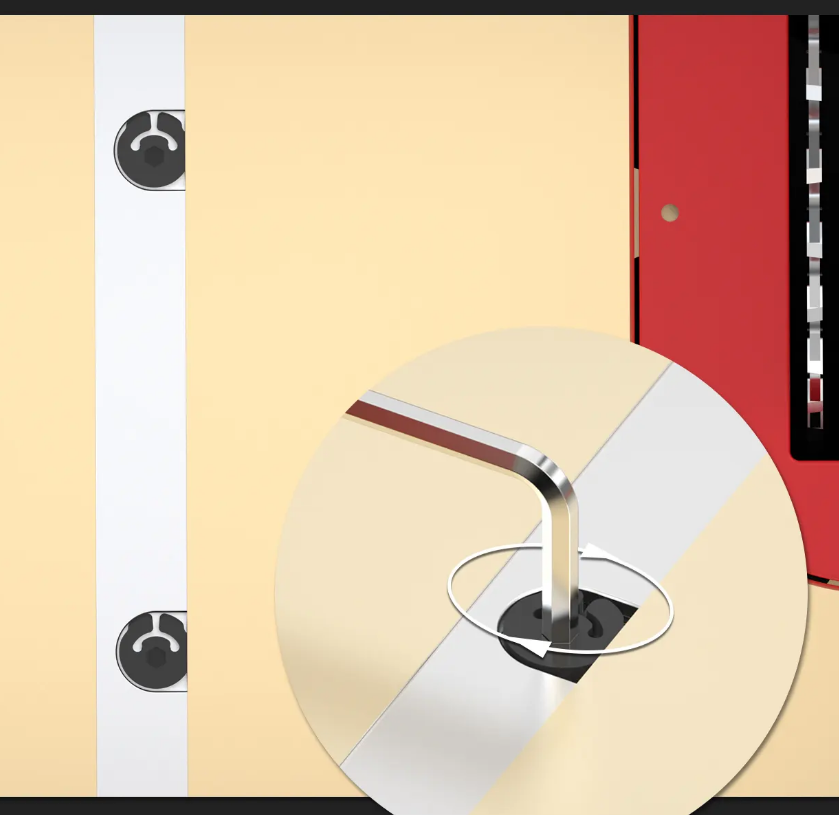

MG-36PRO — Newly Designed Cam Adjusters

MG-36PRO Specifications

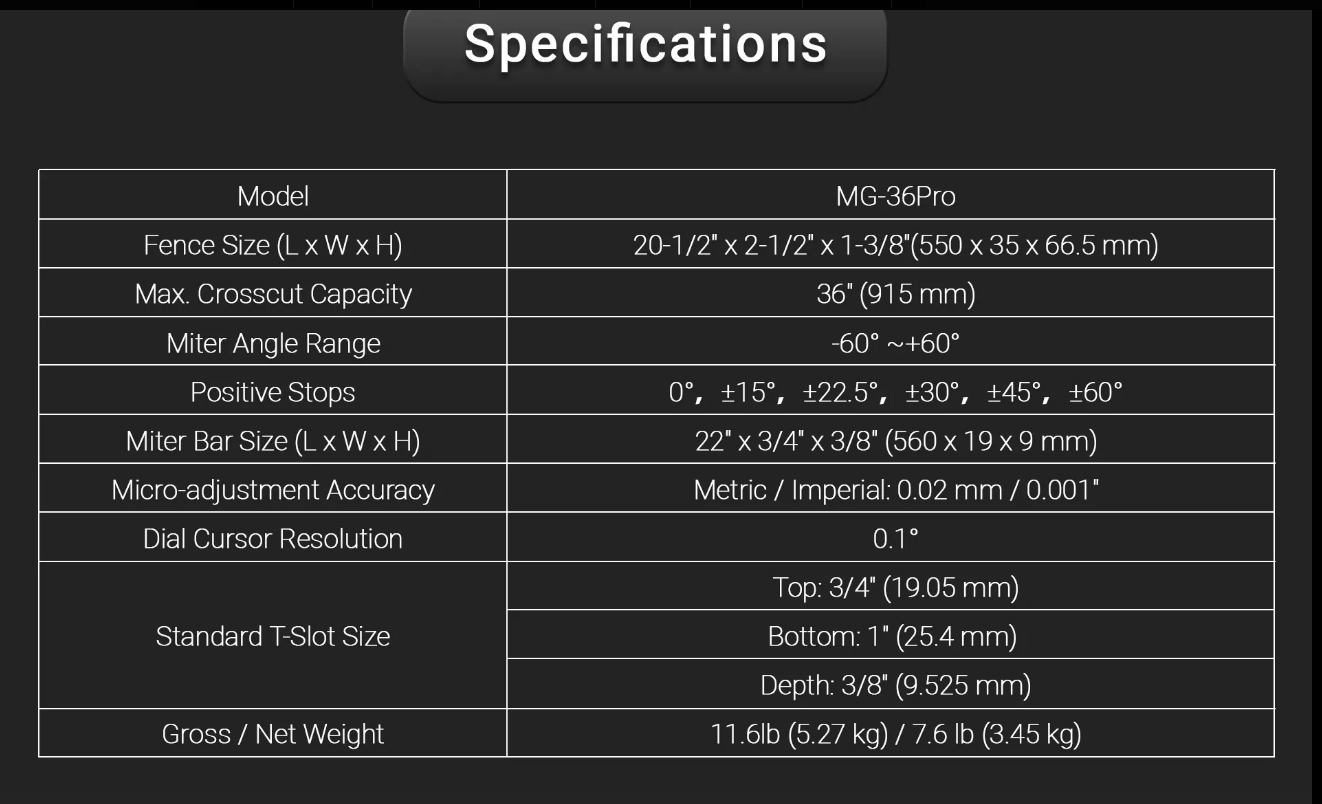

MG-36PRO — Specifications Chart

Discontinued Model

Compass MG-36 (Non-Pro) — Features & Specifications

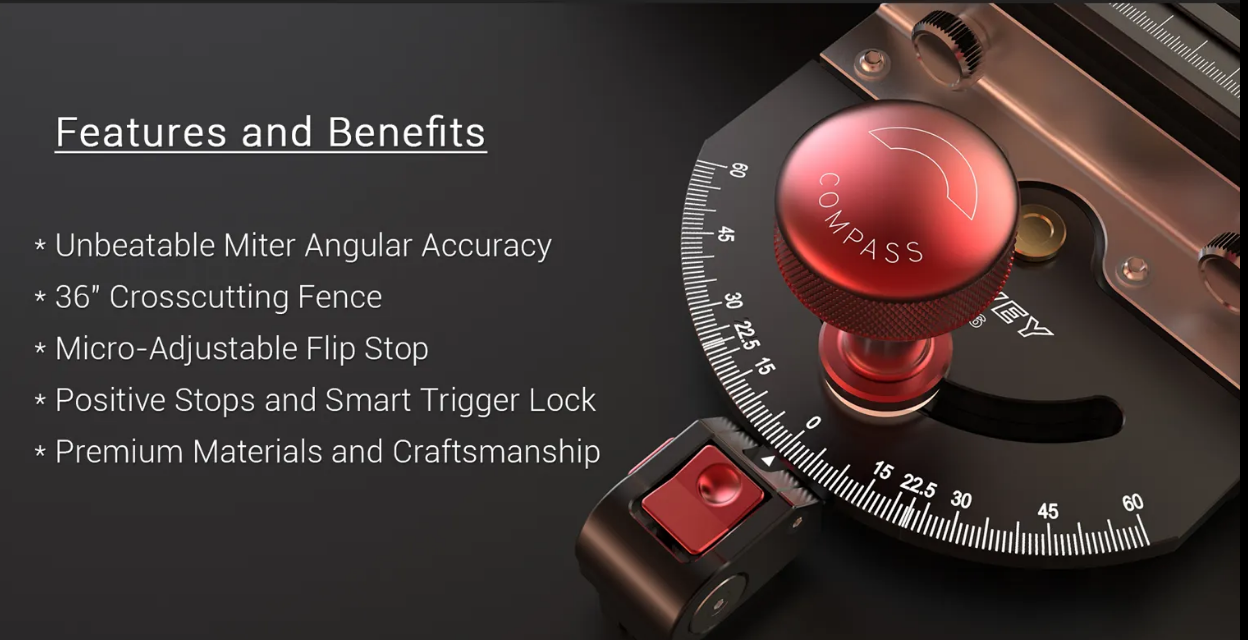

Compass MG-36 — Overview (Discontinued)

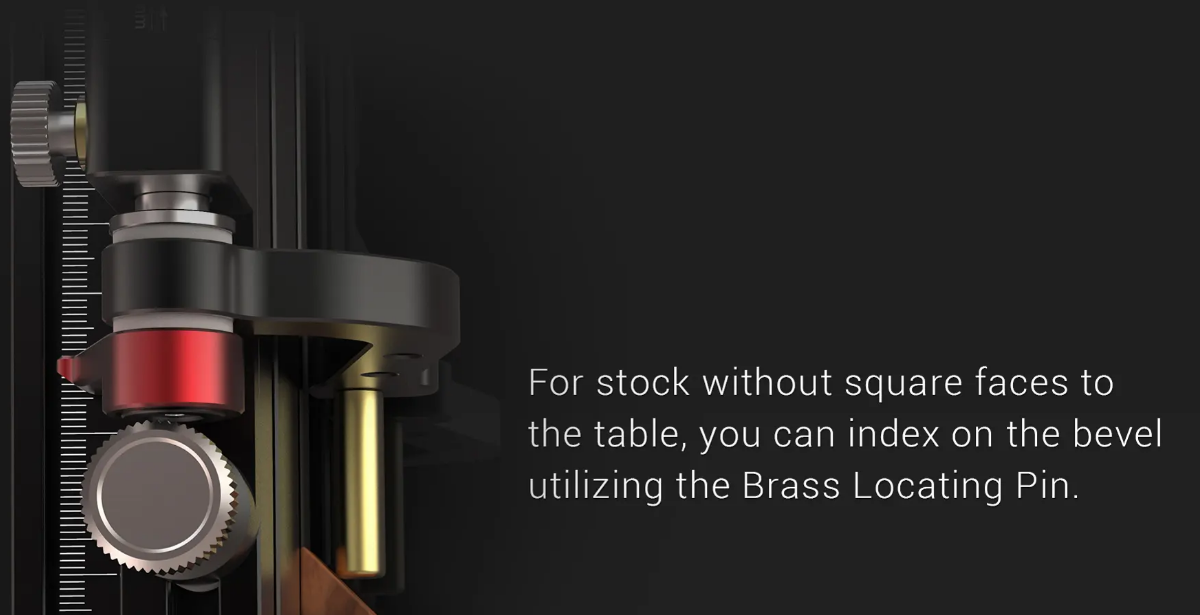

Original Flip Stop Design

The original MG-36 featured the first-generation flip stop design, which was later improved in the PRO version.

MG-36 — Original Flip Stop Design

Original Cam Adjusters Design

The original cam adjuster design was revised in the PRO model with a newly engineered version for more precise miter bar fitment.

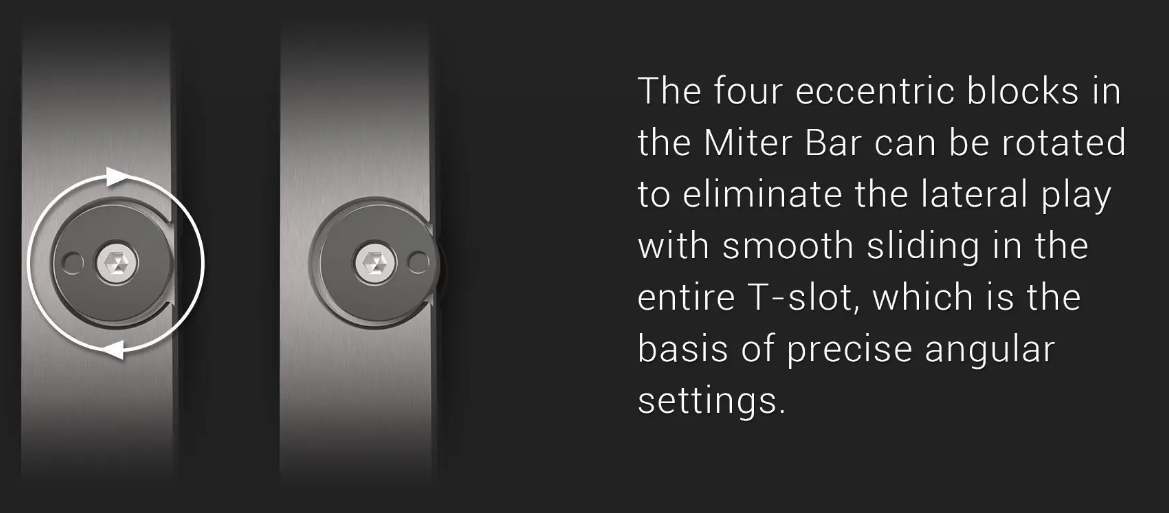

MG-36 — Original Cam Adjusters

MG-36 Specifications

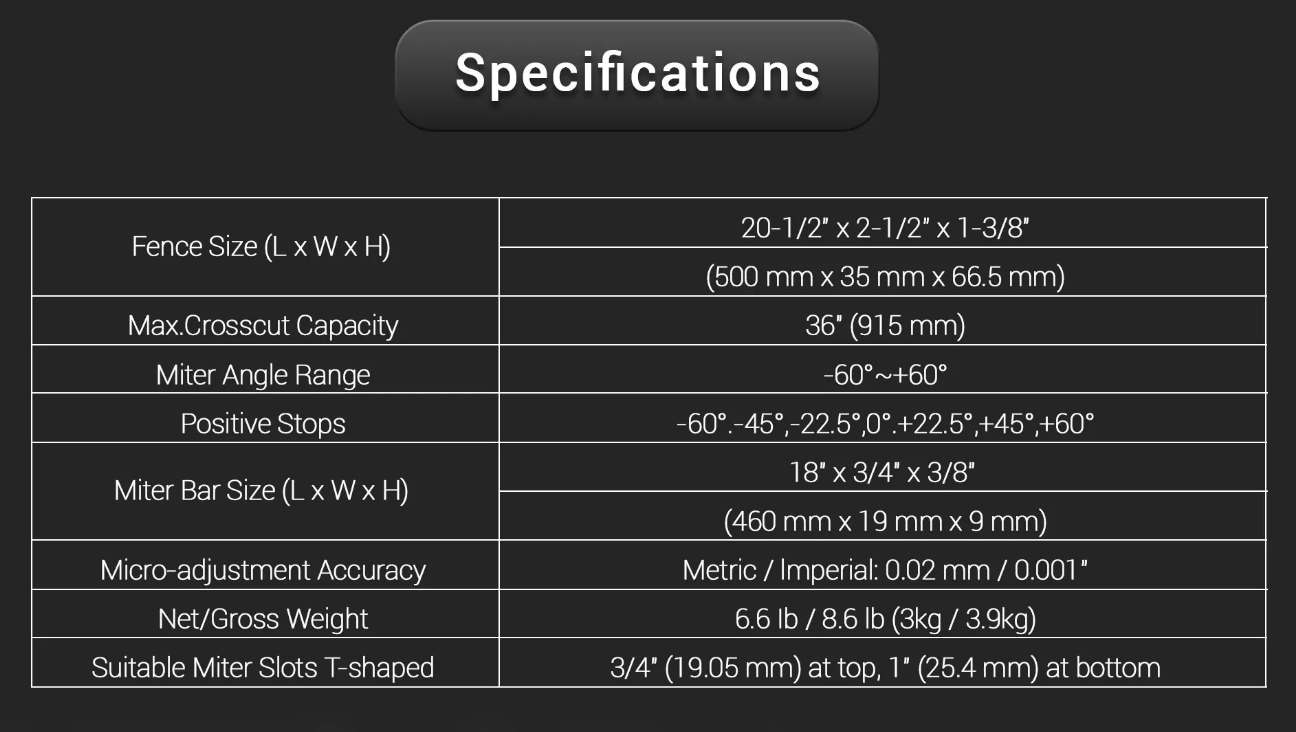

MG-36 — Specifications Chart

Which Should I Choose?

The MG-36PRO is the recommended choice — it is the only version currently available and includes a longer miter bar, redesigned flip stop, and improved cam adjusters. The original MG-36 has been discontinued.

For questions about the MG-36PRO or spare parts for either model, please contact our support team.
