Big Eye B-36/B-52 Rip Fence System: Custom Expansions

Created by Gabriel Izzo, Modified on Thu, 21 May at 11:19 AM by Gabriel Izzo

Big Eye Rip Fence System · B-36 / B-52

Custom Expansions — T-Track Hardware Guide

Applicable Models

Big Eye B-36 Rip Fence System

Big Eye B-52 Rip Fence System

The Big Eye Fence System features two T-track channels — one on the top and one on the face of the fence — each designed for different types of accessories and hardware. Below are the compatible hardware specifications and sourcing options for each.

Fence Body Top & Face

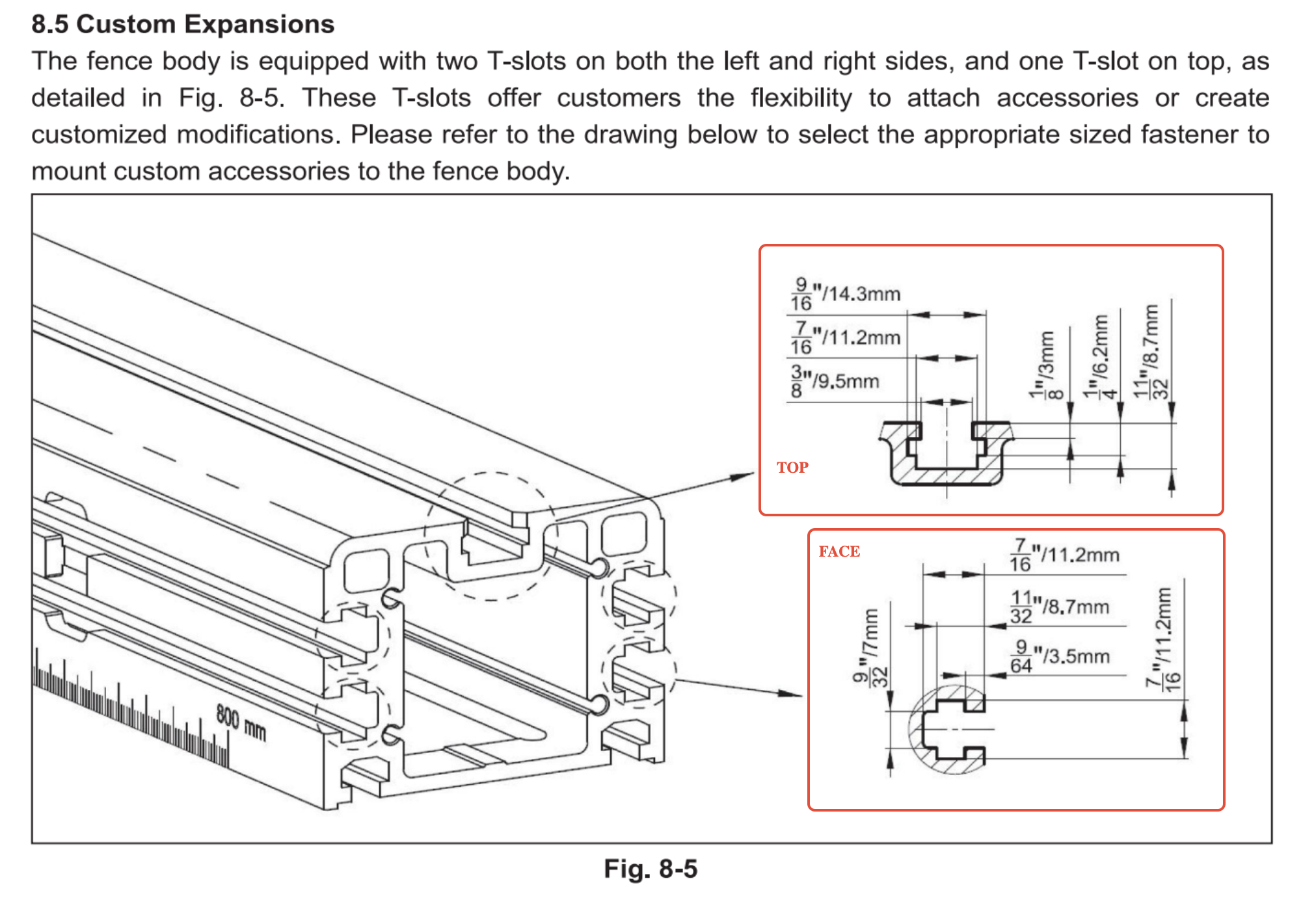

Fence T-Track — Dimensions

Fence Body T-Track — Overview

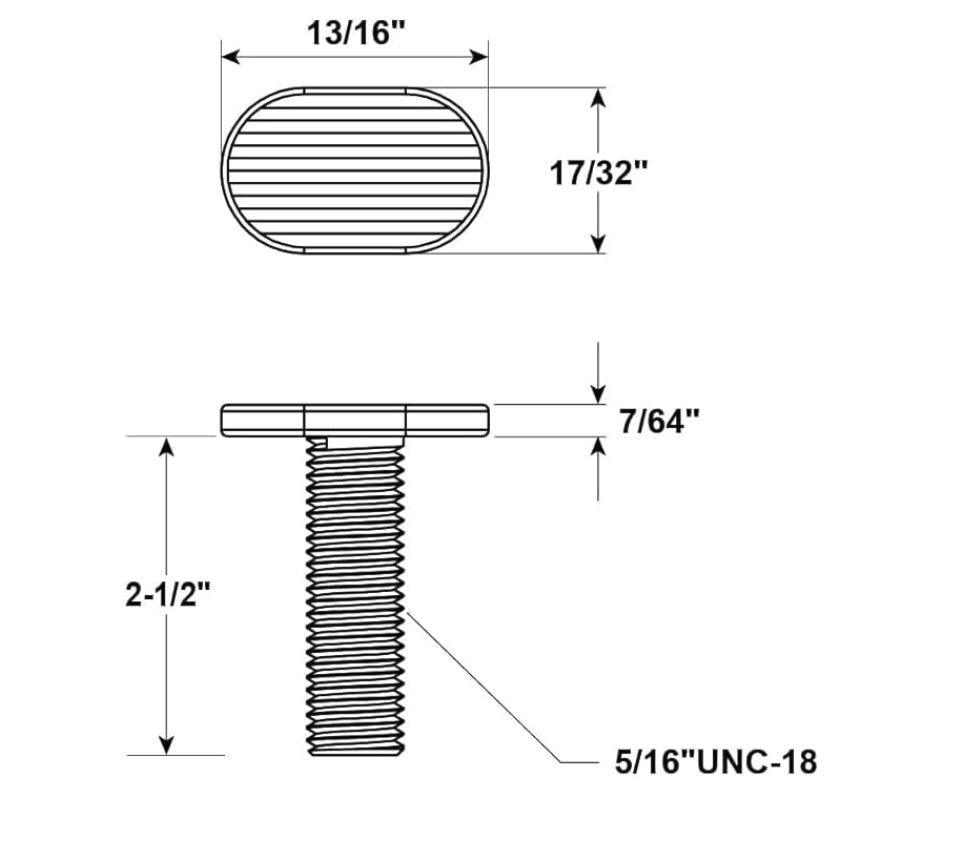

Top T-Track — Compatible T-Bolt Plate Size

Sourcing Options — Top T-Track Hardware

Powertec — Website

powertecproducts.com · Knobs, nuts & T-bolt hardware

↗

Powertec — Amazon

amazon.com · POWERTEC T-Bolt Kit

↗

Face Surface

Fence T-Track (Face) — Compatible Hardware

Face T-Track M6 Square Nuts & M6 Screws

The face T-track uses the same M6 square nut and screw hardware as the sacrificial fence. When sourcing from alternate suppliers, verify thread specifications match before purchasing.

Sourcing Options — Face T-Track Hardware

McMaster-Carr — M6 Square Nuts

mcmaster.com · M6 thread, square nut type

↗

McMaster-Carr — M6 Screws

mcmaster.com · M6 flat head Phillips screws

↗

For questions about compatible accessories or custom expansion hardware, please contact our support team.
