Big Eye B-36/B-52 Rip Fence System: Compatibility

Created by Gabriel Izzo, Modified on Fri, 26 Apr at 4:11 PM by Gabriel Izzo

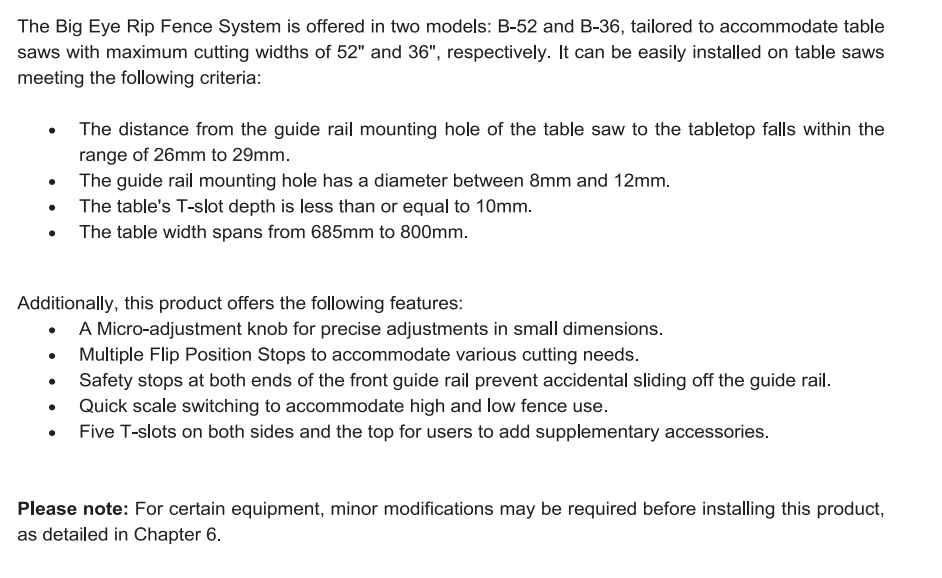

Big Eye Fence System Manual and Assembly Video

Compatible Models List (modifications may be required):

The following models are compatible with the Big Eye Fence and may or may not require modifications depending on the model and the extensions installed. We have attempted to include some of this information with each model number where applicable. This is not an exhaustive list of all compatible models.


Models not listed may or may not be compatible based on the installation requirements or other factors. For saws not listed that you need help in determining compatibility, please contact us by phone at 888-211-0397 or you can Submit a Technical Support Ticket Here


27" Table Saw Models:

  • Harvey Ambassador C-Series
  • SawStop; PCS, CNS (modifications required see support article: Big Eye PCS/ICS Installation
  • Delta; Unisaw (modifications required)
  • Grizzly; G1023, G0444, G0690/G0691
  • Jet; ProShop II
  • Laguna; Fusion
  • Shop Fox; W1888
  • Powermatic; PM1000B


30" Table Saw Models:


30-1/2" Table Saw Models:

  • Powermatic; PM2000B


31-1/2" Table Saw Models:

  • Harvey Alpha HW110 Series




**NOT COMPATIBLE:

The following models either do not meet the necessary criteria for compatibility or are not compatible without extensive custom modifications. This is not an exhaustive list of all incompatible models.


Incompatible Table Saw Models:

  • SawStop CTS Compact Table Saw
  • PM3000B; 38" table is larger than the compatible size range 27"-31-1/2"
  • Shop Smith Mark 5
  • Jobsite and Compact Table Saws with table dimensions smaller than 27" front to back
