Alpha HW110TC-36 Table Saw: Component Weights & Dimensions Palletized

Created by Gabriel Izzo, Modified on Thu, 11 Apr at 3:18 PM by Gabriel Izzo

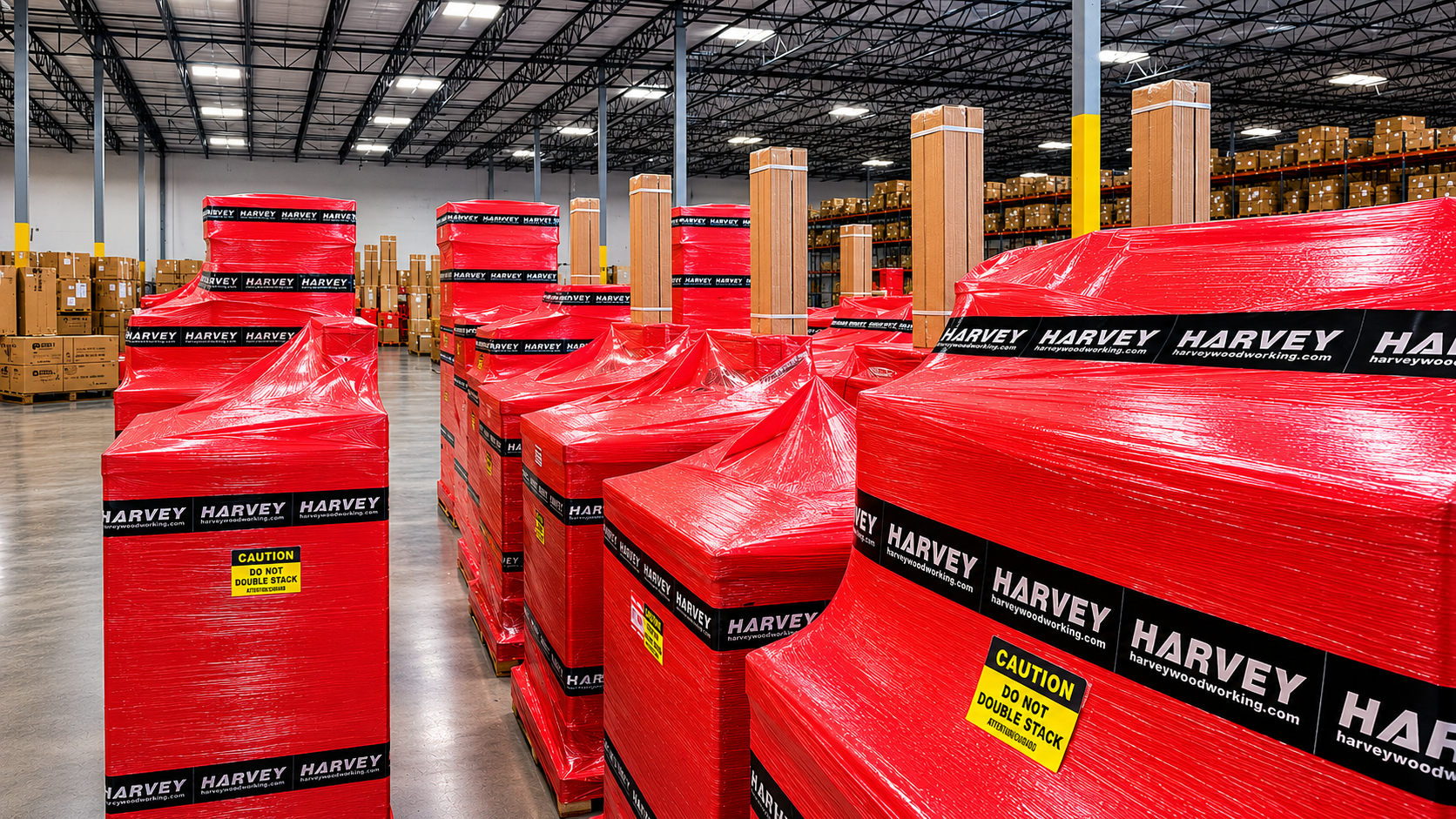

The Alpha HW110TC-36(P) comes with approximate packaging and dimensions as follows, useful for transportation and handling considerations:


  • Overall Dimensions with Packaging: The unit, including the fence and overhead guard with rails on the pallet, measures approximately 37” (L) x 38” (W) x 75” (H).
  • Height Details:
    • Rails (tallest point on the pallet) stand at 75" high, reaching 81" when on the pallet.
    • The overhead guard assembly box is 51" tall.
    • The main cabinet saw box has a height of 40".
  • Pallet Only Dimensions: Typically 43.5” (L) x 43.5” (W) x 6” (H).
  • Cast Iron Table Top Dimensions: 31.5" x 22.44", with the unit's height being about 34.5".
  • Weight: The unit weighs approximately 323lbs with all accessories removed.


This weight is calculated from the total assembled table weight of 518lbs, subtracting the weights of the miter gauge (10lbs), fence (24lbs), overhead guard (10lbs), rails (51lbs), and left and right wings (approximately 100lbs combined).
