Alpha HW110TC-52 Table Saw: Distance From Cabinet to Extension Legs

Created by Gabriel Izzo, Modified on Tue, 26 May at 10:14 AM by Gabriel Izzo

Alpha HW110TC-52 Table Saw · Specifications
Distance From Cabinet to Extension Legs
Applicable Model
Alpha HW110TC-52 (3HP)
Overview

Key dimensions for the HW110TC-52, useful for planning shop layout, mobile base design, or ensuring adequate clearance for installation.

Key Dimensions
DimensionMetric
Overall Length2160 mm
Cabinet to Extension Legs1207.5 mm
Dimensional Diagram

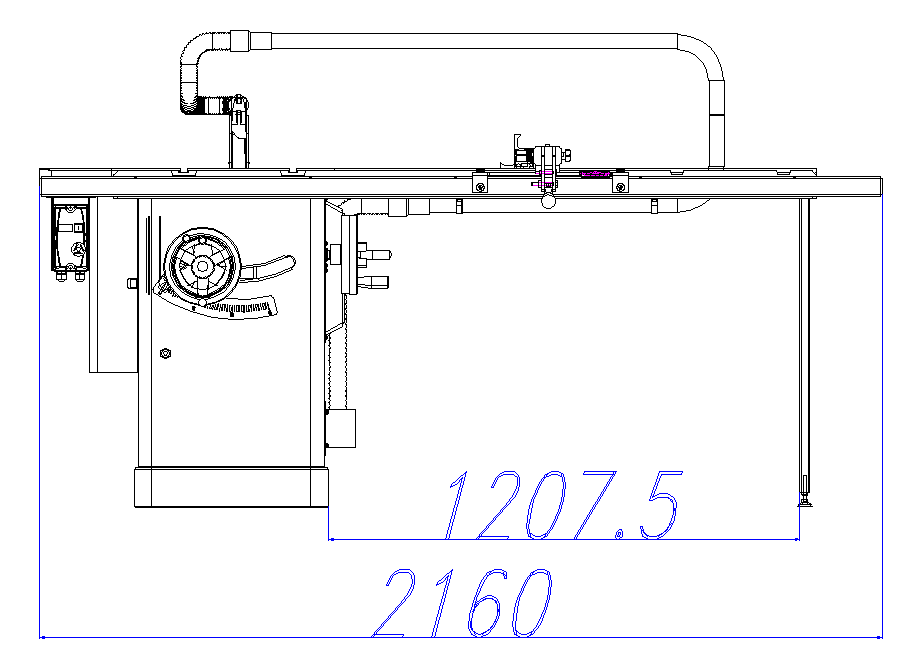

HW110TC-52 — Cabinet to Extension Leg Dimensions
HW110TC-52 dimensional diagram showing cabinet to extension leg distance
i

For additional dimensional details or layout planning assistance, please contact our support team.
