Custom Dust Port Zero Clearance Insert

Applicable Models

Alpha HW615

Ambassador C14

These band saws include a slot located below the upper dust port that can be used to support a custom zero-clearance insert plate. An insert can be made from wood, MDF, or other suitable material by cutting a piece to fit the slot dimensions below and then adding a 45-degree blade cutout to allow the blade to pass through.

⚠ Band Saw Safety

Turn the band saw OFF and unplug it whenever working inside the cabinet, performing maintenance, removing or reinstalling the blade, or installing and removing the zero-clearance insert.

Wear safety glasses at all times when operating the band saw or cutting the insert material.

Wear a dust mask (N95 or better) when cutting wood — and especially when cutting MDF or composite materials, which produce particularly fine and harmful dust particles.

When cutting the insert to size on a table saw or band saw, use a fence and push stick — do not freehand cut small pieces near the blade.

Verify the insert is fully and securely seated in the slot before operating the band saw. A loose or improperly fitted insert can shift during operation and interfere with the blade.

Zero Clearance Insert Dimensions

Dimension	Measurement
Depth	14 mm
Width	57 mm
Length	100 mm
Blade Cutout Angle	45°

Benefits

✓

The insert guides dust toward the upper port, which is especially beneficial when using only one port or when dust collection is underpowered — concentrating suction to a single port improves overall collection performance.

✓

Less dust in the lower cabinet extends the time between maintenance cleanings and manual dust removal.

Reference Photos

Slot Location — Below Upper Dust Port

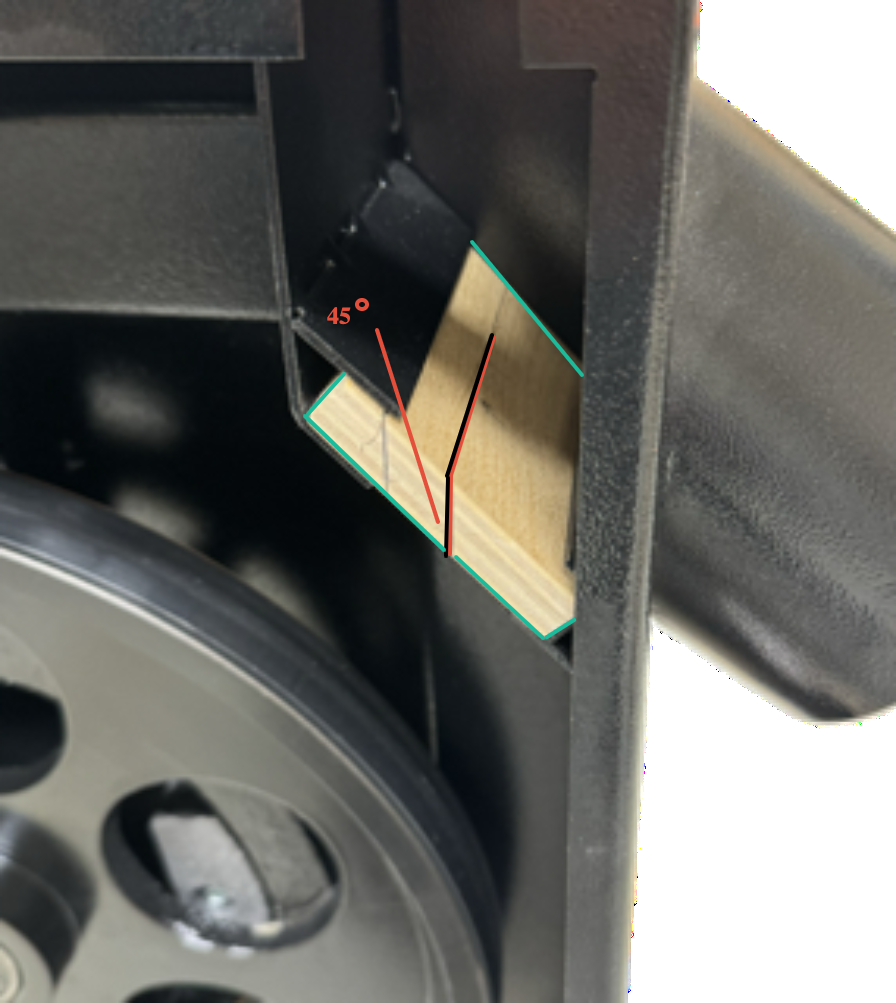

Example Zero Clearance Insert

Example custom zero clearance insert with 45-degree blade cutout

For questions about compatibility or fitting, please contact our support team.
