Compass ST-1500 Sliding Table: SawStop ICS Mounting

Created by Gabriel Izzo, Modified on Mon, 18 May at 8:24 PM by Gabriel Izzo

Compass ST-1500 Sliding Table · Mounting

SawStop ICS Mounting

Applicable Models

Compass ST-1500 Sliding Table

SawStop ICS 30"

✓

The ST-1500 is compatible with SawStop ICS 30" models and comes with dedicated mounting hardware, as well as pre-drilled holes for both standard and flush mounting.

Included Hardware — ICS Mounting

For ICS models, use the following included hardware and mounting holes (standard or flush mounted):

Fig. 1 — ICS Mounting Hardware

Pre-Drilled Hole Pattern — SawStop ICS 30"

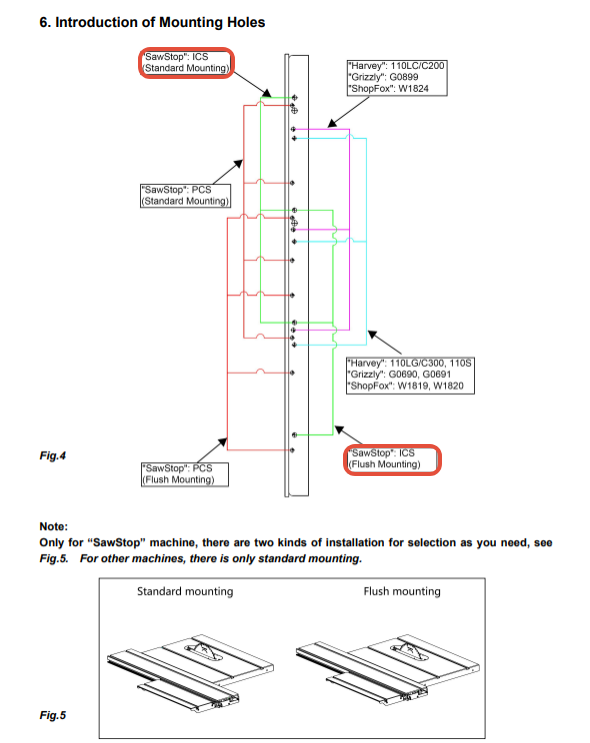

Fig. 2 — Pre-Drilled Holes for SawStop ICS 30" Table Saws

ST-1500 pre-drilled hole pattern diagram for SawStop ICS 30 inch table saws

Instruction Manual

PDF Compass ST-1500 Sliding Table Instruction Manual ↗

Need further assistance with mounting or alignment? Please contact our support team.
