Compass ST-1500 Sliding Table: Exploded View & Parts List

Created by Gabriel Izzo, Modified on Mon, 1 Jun at 4:53 PM by Gabriel Izzo

Harvey Industries · Compass · ST-1500 Sliding Table · Parts Reference

ST-1500 Sliding Table — Exploded View & Parts List

Exploded view diagrams and numbered parts list for the Compass ST-1500 Sliding Table. Use these references when identifying individual components for repair or replacement.

Exploded View & Parts List Diagrams

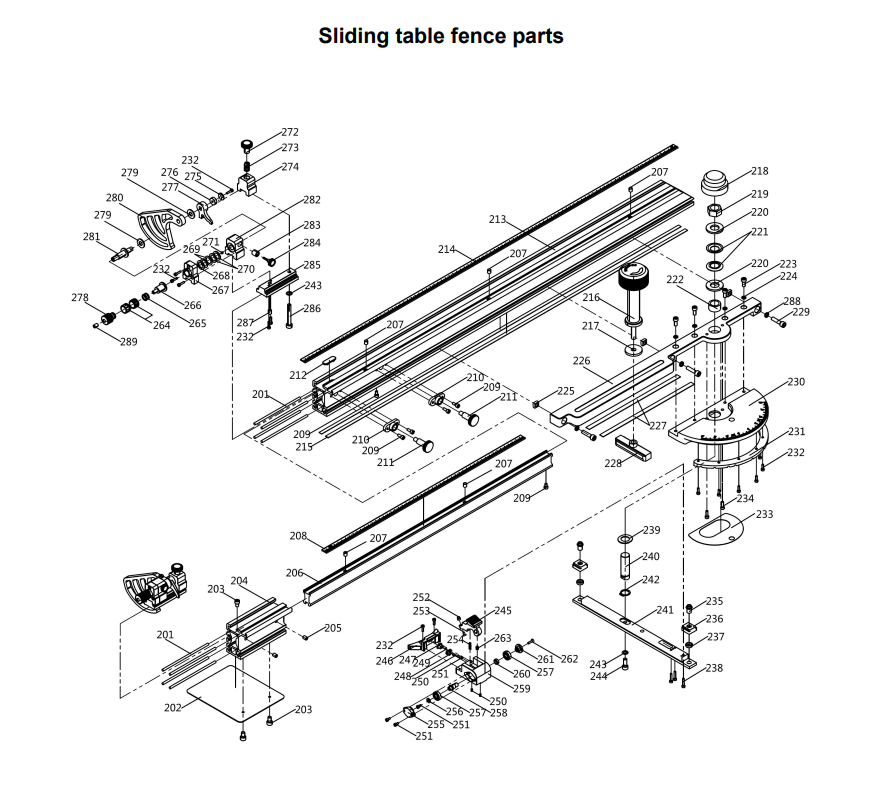

ST-1500 — Exploded View & Parts List (1 of 3)

ST-1500 exploded view parts list diagram 1

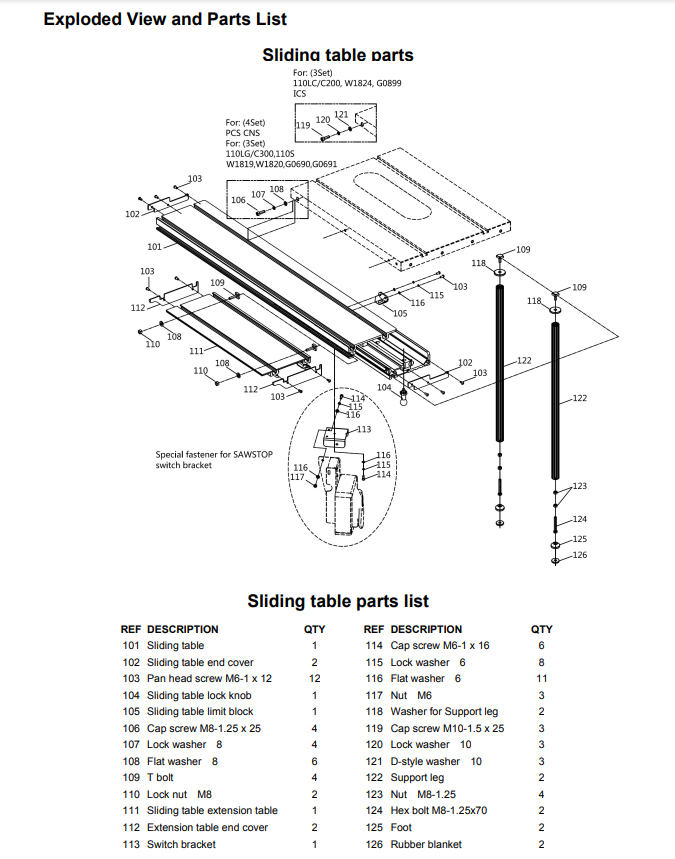

ST-1500 — Exploded View & Parts List (2 of 3)

ST-1500 exploded view parts list diagram 2

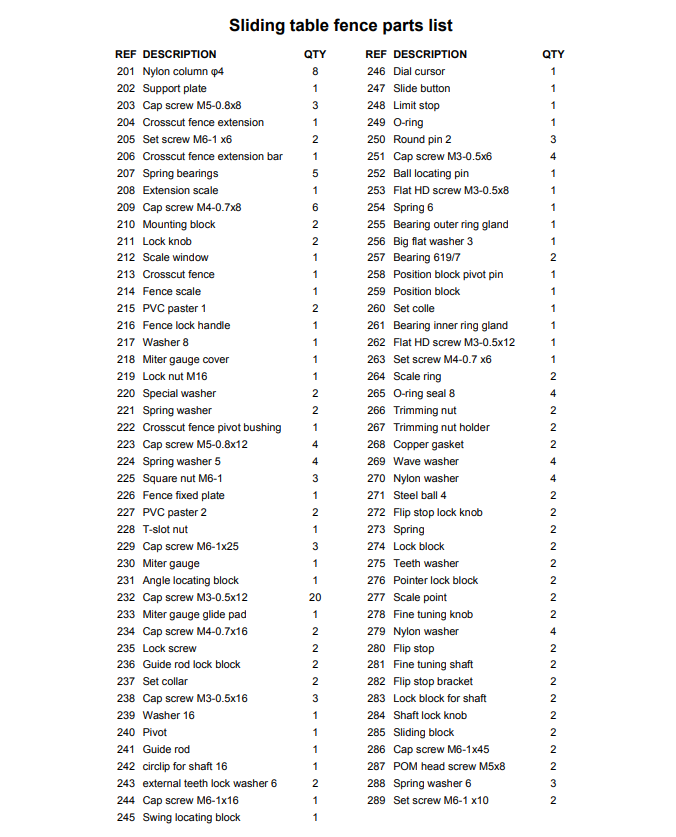

ST-1500 — Exploded View & Parts List (3 of 3)

ST-1500 exploded view parts list diagram 3

ST-1500 Manual

Compass ST-1500 Sliding Table Manual

Harvey Industries Knowledge Base

↗

For help identifying or ordering replacement parts for the ST-1500, please contact our support team.
