Knockout Rod Does Not Fit Through the Tailstock

Applicable Models

Harvey Turbo T-40 Wood Lathe

Harvey Turbo T-60S Wood Lathe

The Short Answer

Since the tailstock is self-ejecting, the knockout rod is not intended for use with the tailstock. It is primarily designed to remove accessories from the headstock spindle — such as the spur center or live center — as demonstrated in the manual diagrams below.

Tailstock — Self-Ejecting

The quill on the tailstock automatically ejects accessories when fully retracted. In most cases a knockout rod is simply not needed — the tailstock handles this on its own.

If You Still Prefer to Use a Rod on the Tailstock

A slightly smaller diameter rod may be used — though this is generally unnecessary given the self-ejecting design.

Morse Taper Extension — Short Accessories

If an accessory has a taper that is too short to self-eject when the tailstock is fully retracted, a Morse Taper #2 Female to Male Extension will increase the effective length of the accessory and allow it to eject normally from the tailstock.

Headstock Knockout Rod — Manual Diagrams

The following diagrams from the manual show the correct use of the knockout rod with the headstock spindle:

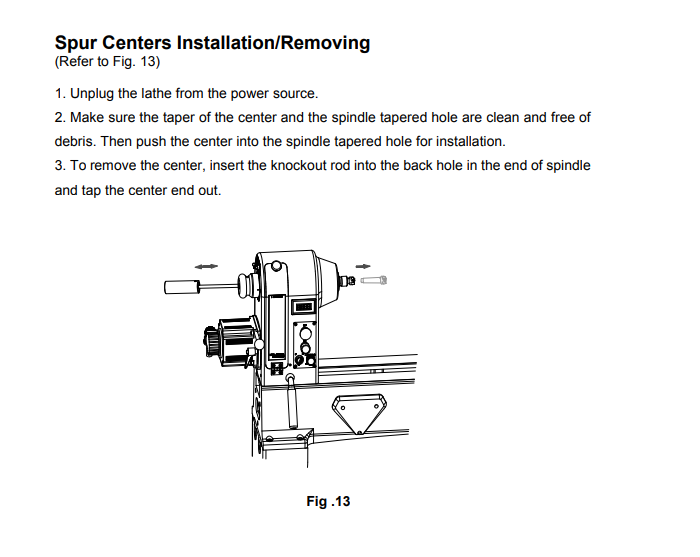

Manual Diagram — Knockout Rod (Headstock) Fig. 1

Manual diagram showing knockout rod use on headstock

Manual Diagram — Knockout Rod (Headstock) Fig. 2

Manual diagram showing knockout rod use on headstock detail

For questions about compatible accessories or removal procedures, please contact our support team.
