Gyro Air Series: RC-700 Remote Control & Receiver - (Siemens Inverter Models Only)

Created by Hung Nguyen, Modified on Mon, 1 Jun at 9:44 AM by Gabriel Izzo

Gyro Air Series · RC-700 · Remote Control

RC-700 Remote Control & Receiver — Siemens Inverter Models Only

⚠ Applies to Old Version Siemens VFD Models Only

This article and manual apply to the old version G-700 with a Siemens VFD that did not ship with a receiver included.

✓ All later G-700 models come with the remote & receiver included.

Applicable Models

Gyro Air G-700 Remote/Receiver Kit — Old version · Siemens VFD · without built-in receiver

Instruction Manual

PDF

RC-700 Remote Control Instruction Manual

harveyedu.com · RC-700 · Siemens VFD Version

↗

Technical Note — ZHZCLL Relay Models

For receivers that use ZHZCLL relays only

There will be an additional wire connecting V+ → COM1 which sends 24V to the communication terminal, connected to the NO1 terminal. When connecting the receiver using the 3-wire configuration it will have the 24V wire from the machine's main terminal block and the jumper wire connected on the V+ terminal, as shown in the diagram below.

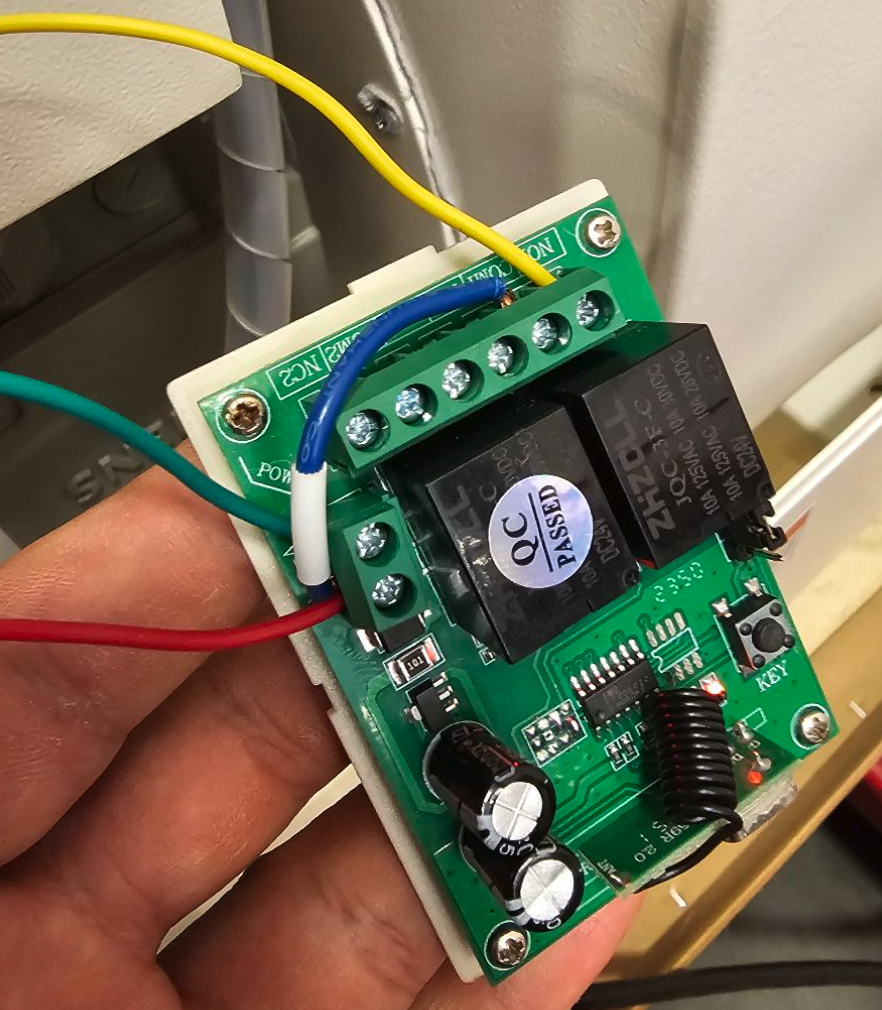

RC-700 ZHZCLL Relay — V+ → COM1 Wiring Diagram

RC-700 ZHZCLL relay wiring diagram V+ to COM1

For further assistance with the RC-700 remote or wiring, please contact our support team.
