Alpha HW615/Ambassador C14 Band Saws: Thrust Bearing Wear - What to Expect

Created by Gabriel Izzo, Modified on Thu, 21 May at 9:26 AM by Gabriel Izzo

Alpha HW615 / Ambassador C14 Band Saws · Maintenance

Thrust Bearing Wear — What to Expect

Applicable Models

Alpha HW615

Alpha HW615 Pro

Ambassador C14

Ambassador C14 Pro

Alpha A-15

Groove Wear — Normal Over Time

Over time, thrust bearings may develop a visible groove due to normal use. This occurs as the back of the blade gradually wears into the outer sleeve or jacket of the bearing during cutting operations.

Heat Management — The Role of the Bushing

To help manage heat and protect the blade, each bearing is surrounded by a thick bushing made from a softer metal. This bushing is designed to absorb excess heat and reduce direct wear on the blade itself.

Chrome Coating Wear — Cosmetic Only

It is completely normal for the chrome coating on the bearing to wear off after some use. This cosmetic change does not affect performance and does not indicate a defect.

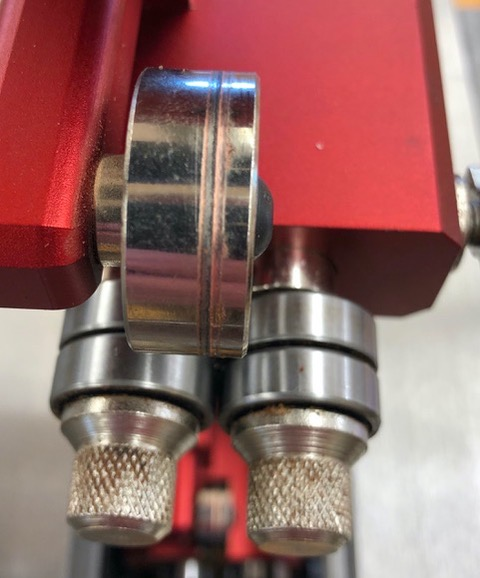

Thrust Bearing — Normal Wear Example

Thrust bearing showing normal groove wear and chrome coating wear

If you have concerns about bearing condition or blade wear, please contact our support team.
