Alpha HW615/Ambassador C14 Band Saws: Plug Type

Created by Gabriel Izzo, Modified on Fri, 15 May at 3:57 PM by Gabriel Izzo

Band Saw · Electrical

Plug Type — NEMA 6-20P

Alpha HW615

Ambassador C14

These band saws require a NEMA 6-20P plug and a corresponding NEMA 6-20R receptacle. This is a 240V, 20-amp, grounded outlet — commonly found in workshops. It does not use a neutral wire.

Electrical Specifications

250V 20A Grounded No Neutral Single Phase

Plug & Outlet Diagram

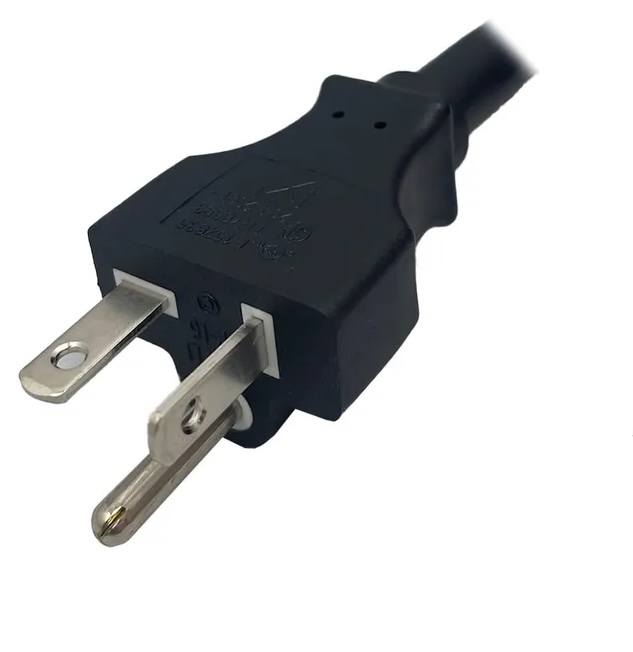

NEMA 6-20P · Plug NEMA 6-20P plug showing vertical and horizontal blades with ground pin

↔

Matches

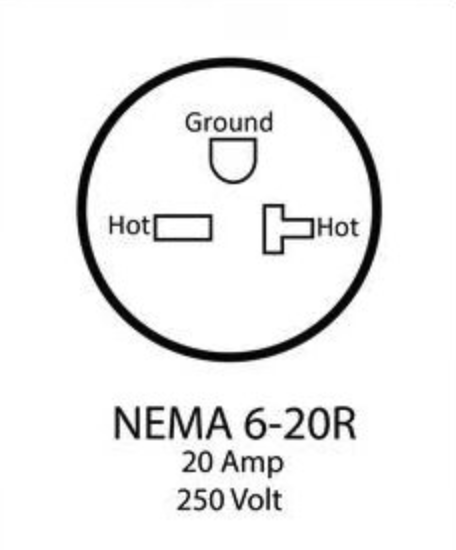

NEMA 6-20R · Outlet NEMA 6-20R outlet diagram showing Ground at top, Hot left and Hot right slots

⚠ Electrical Installation Warning

A 240V / 20A dedicated circuit and NEMA 6-20R outlet must be installed by a licensed electrician in accordance with local electrical codes. Do not modify the machine plug or use an adapter. If you are unsure about your facility's electrical setup, consult a qualified electrician before use.

If you have questions about electrical requirements for your machine, please contact our support team.
