Harvey Alpha Series Table Saws: Dovetail & Worm Gear Trunnions Compared

Created by Gabriel Izzo, Modified on Wed, 10 Apr at 3:32 PM by Gabriel Izzo

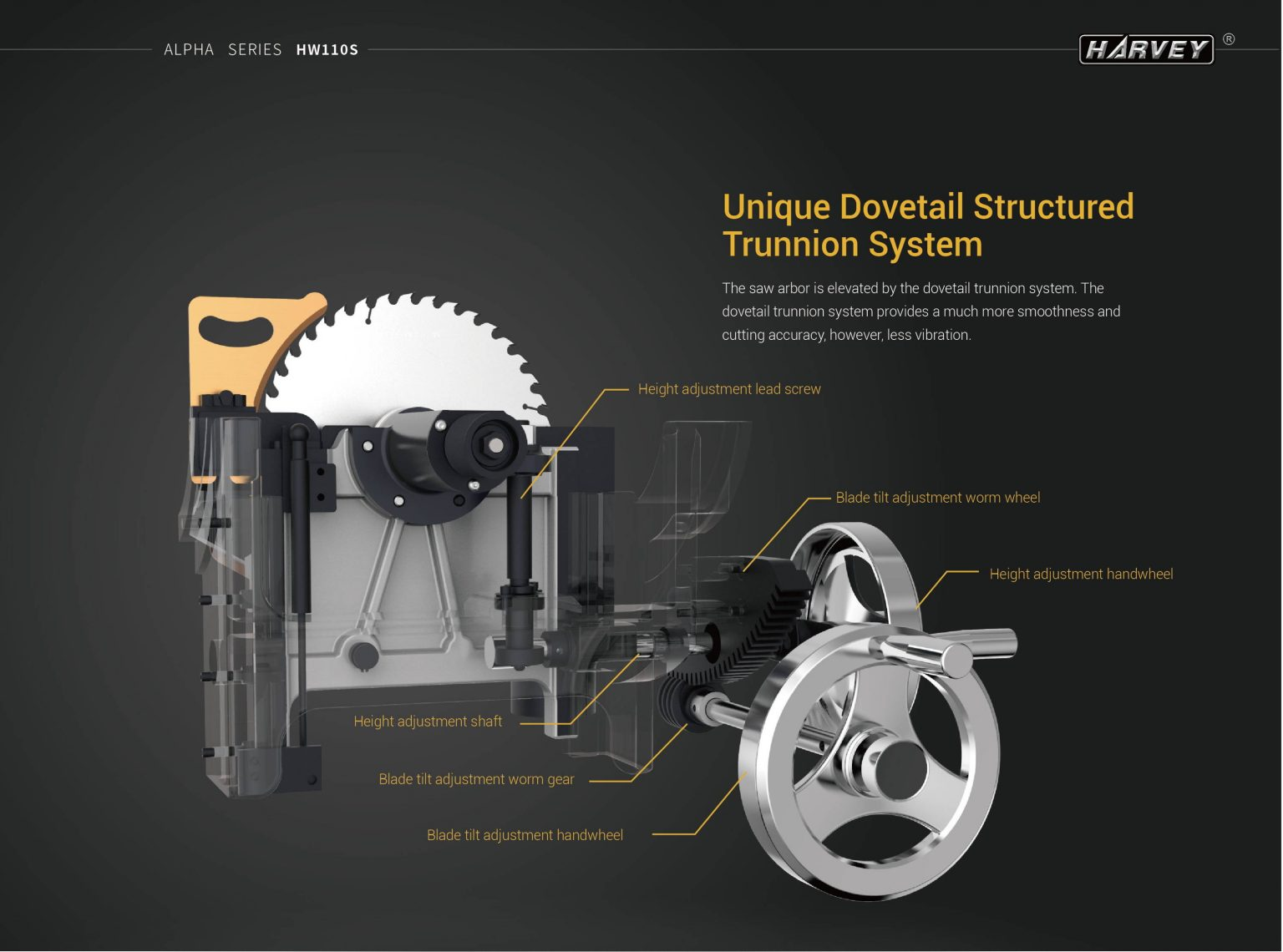

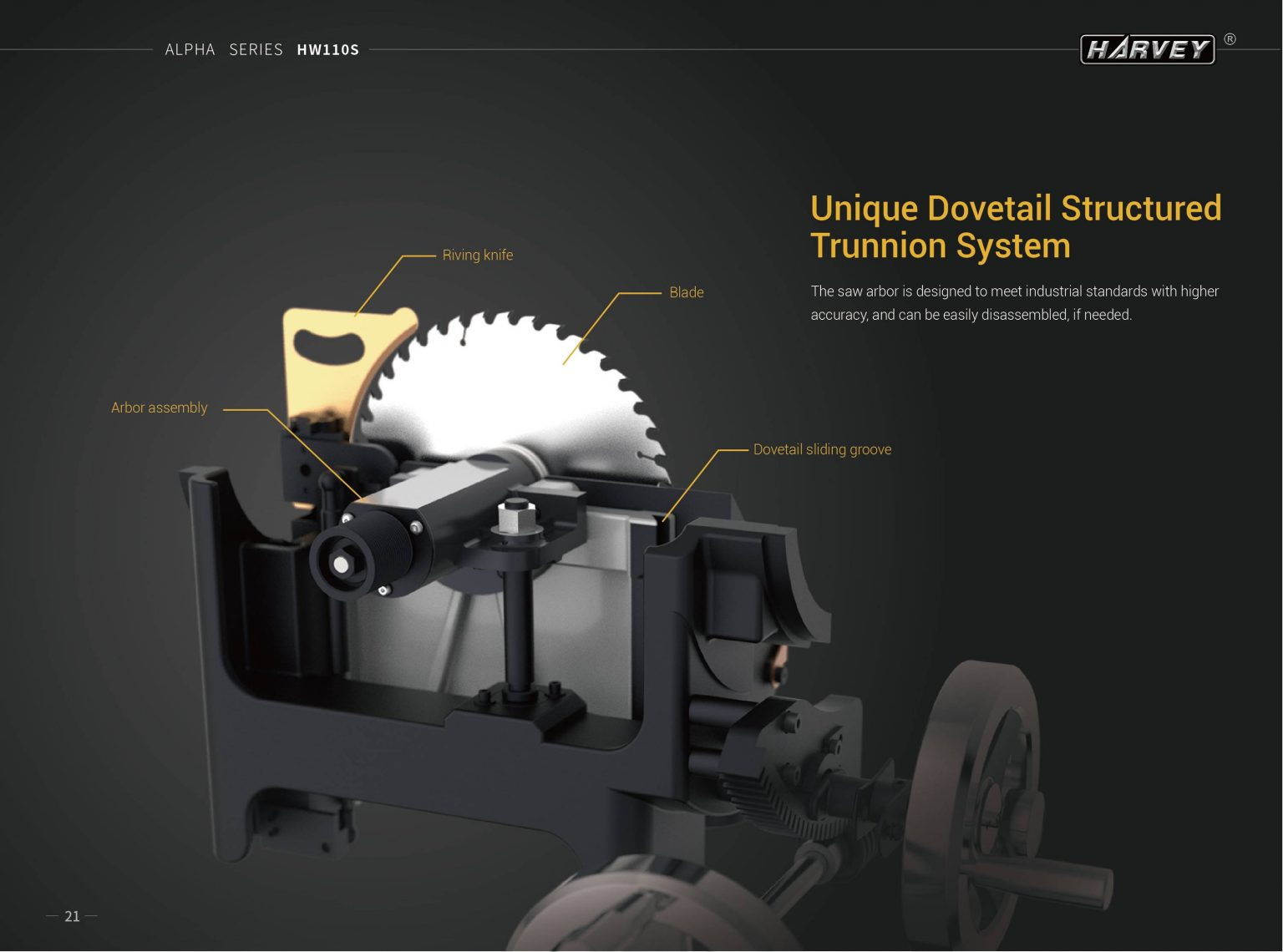

A dovetail table saw is part of the trunnion design that controls the elevation of the blade. The “dovetail” of the trunnion assembly helps keep the blade inline when raising/lower, whereas there is a slight pivot movement seen in normal trunnion design. The advantage of a trunnion design is accuracy, smoothness and less vibration.


To learn more check out the following video:

Tablesaw Talk - Tool Talk with Harvey!
