Compass RT-685 Router Table — Exploded View & Parts List

⚠ Discontinued Model

The RT-685 has been discontinued and is no longer available for purchase. It has been replaced by the RT-800. This parts list is provided as a reference for existing RT-685 owners only.

Exploded view diagram and numbered parts list for the Compass RT-685 Cast Iron Router Table. Use this reference when identifying individual components for repair or replacement.

Exploded View & Parts List

Compass RT-685 Router Table — Exploded View & Parts List

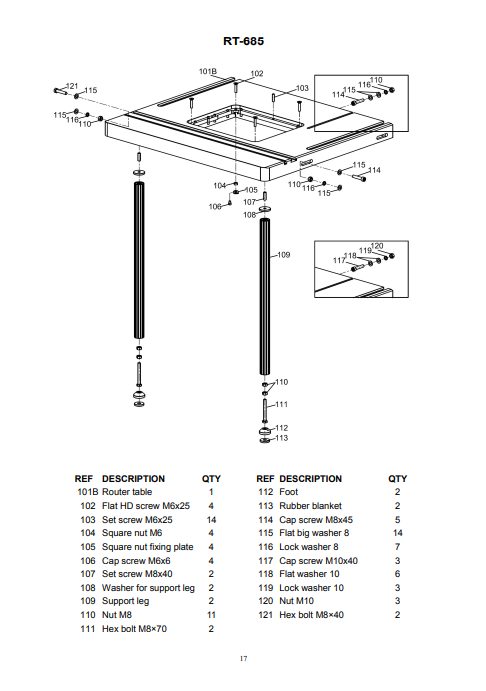

Compass RT-685 router table exploded view and parts list

RT-685 / RT-800 Manual & Product Page

Compass RT-685 & RT-800 — Manual, Assembly Video & Product Page

Harvey Industries Knowledge Base

↗

For help identifying or ordering replacement parts, please contact our support team.
